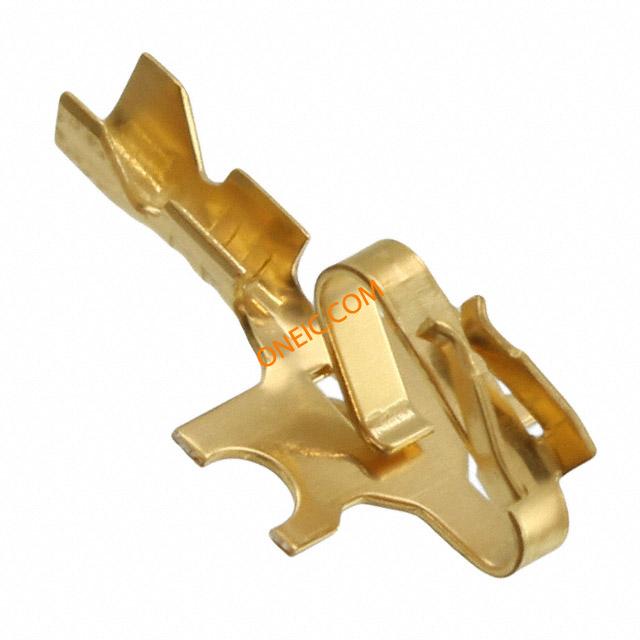

0008560123
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-26AWG GOLD |
| 分类 |
商业参数
| 其他名称 | WM6887CT | 标准包装数量 | 7,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 6 | ||
机械参数
| 深度 | 2.72 | 包装方式 | Reel |
| 导线线规 | 22-26 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Cable Mount | 插针或插孔 | Non-Gendered |
| 连接器类型 | Connector Headers and PCB Recepta... | 接触镀层 | Gold Over Nickel |
| 触头材料 | Phosphor Bronze | 总长度 | 13.7 |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 连接器性别 | SKT | ||
环境参数
| 工作温度 | 75 | ||
