点击放大查看

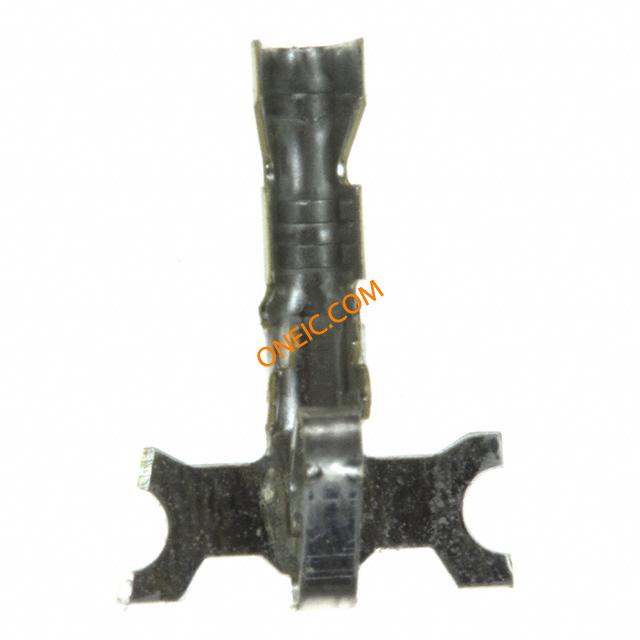

0008500031
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG TIN |
| 分类 |
商业参数
| 交货时间 | 36 Days | 其他名称 | WM2625CT |
| 子类别 | Connector Contact | 标准包装数量 | 7,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 2.5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 2.1 mm | 间距 | Not Required mm |
| 包装方式 | Reel | 导线线规 | 22-30 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Non-Gendered |
| 连接器类型 | Connector Headers and PCB Recepta... | 接触镀层 | Tin |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 10.4 mm |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 40µin (1.02µm) | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 行业别名 | 08-50-0031, 08500031, 8500031 | 适用产品/相关产品 | 0008500032 |
环境参数
| 工作温度 | 0C to 75C | ||
