点击放大查看

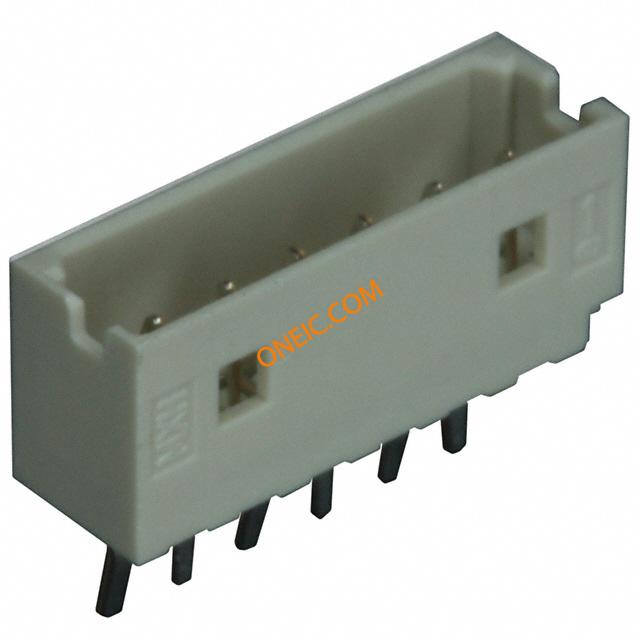

0530140610
| 制造商 | |
| 描述 | . 0530140610 - Connector Header Through Hole 6 position 0.079" (2.00mm) from Molex. from now! |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 2/Contact A |
| 最小输入电压 | 125V | 最小供电电压 | 125V |
机械参数
| 颜色 | Natural | 深度 | 4.35 mm |
| 间距 | 2 mm | 高度 | 5.85 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Pre-Tin | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon 66 | 总长度 | 14 mm |
| 触点数 | 6 | 位数 | 6 |
| 接触长度 - 配合 | 0.122" (3.10mm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 行业别名 | 53014-0610, 530140610 | 加载位置数 | All |
环境参数
| 工作温度 | -20C to 85C | ||
文档与媒体
相关型号

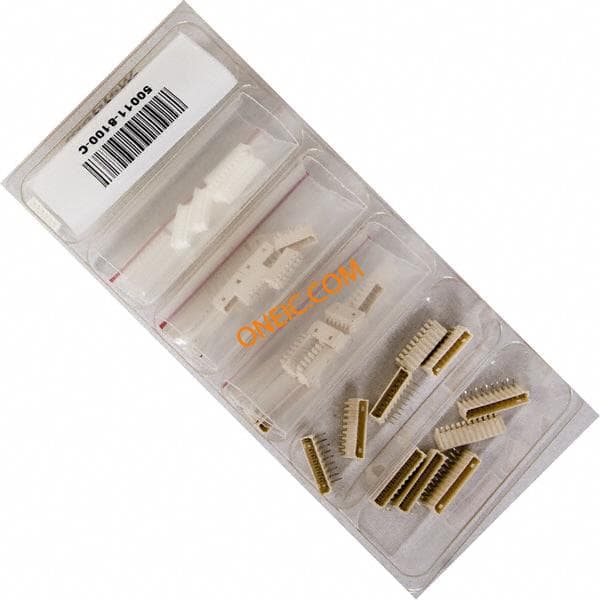

76650-0106
molex
COMPONENT KITS, WIRE TO BOARD KIT 11,6,9POS 2A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM PITCH 125V 24-30 WIRE SIZE KIT CONN MICROBLADE Headers & Wire Housings MICROBLADE KIT DELUXE COMPONENT KITS, WIRE TO BOARD KIT 11,6,9POS 2A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM PITCH 125V ... Kit Description:Friction Lock Vertical and Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:145 MICROBLADE CONNECTOR KIT FRICTION LOCK VERT & RT ANGLE HEADER & RECEPT
51004-0600
molex
Conn Housing RCP 6 POS 2mm Crimp ST Cable Mount Bag CONN RCPT HOUSING 2MM 6POS SGL Housing,rcp,MicroBlade,2.0mm,LoPro,6way Headers & Wire Housings 2MM W-T-B HSG 6P friction lock Conn Housing RCP 6 POS 2mm ST Bag 2.0MM LOW PROFILE HOUSING Molex MICROBLADE 系列 2mm 节距 6 路 直 母 电缆安装 压接连接器外壳
