0511151601
| 制造商 | |
| 描述 | . 0511151601 - Receptacle for Female Contacts Housing D-Type Connector 16 Position from Molex. from now! |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 30V | 最小输入电压 | 30VDC|30VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 26.2 |
| 间距 | 4 mm | 高度 | 20.42 |
| 重量 | 0.01 kg | 包装方式 | Tray |
| 触头类型 | Signal | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 安装样式 | for panel mounting | 排数 | 2 |
| 连接器样式 | D-Type | 锁定特性 | lock |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 51.4 |
| 包装数量 | 200 | 连接器 - 电缆 | socket |
| 触点数 | 16 | 介电材料 | Polybutylene Terephthalate (PBT), Polyester |
| 位数 | 16 | ||
产品信息
| SPG | 200 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
0511171605
Molex, LLC
. 0511171605 - Connector Retainer For D-Sub Connectors from Molex. from now!
¥1.0105
详情
暂无图片
0681540011
molex
Connector Accessories Test Plug 1 POS Bag Connector Accessories Dummy Plug Bag OBD2 DUMMY PLUG ASSY
¥8.3116
详情

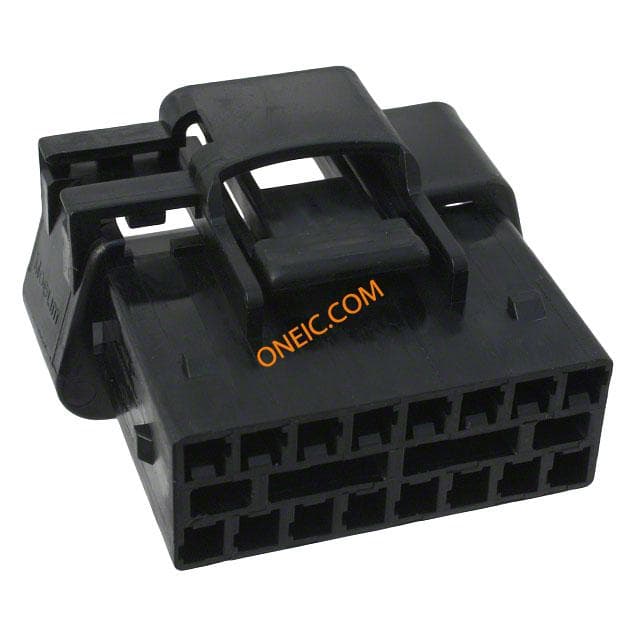

0685031602
Molex
Conn Housing RCP 16 POS 4mm Crimp ST Cable Mount OBD MALE HOUSING 16POS Connector: diagnostic OBD II; plug; male; PIN:16; Locking: lock
¥16.3316
详情
0681540021
Molex
Conn Test Plug M 2 POS ST 1 Port Bag OBD2 DUMMY PLUG ASSY
¥11.0826
详情

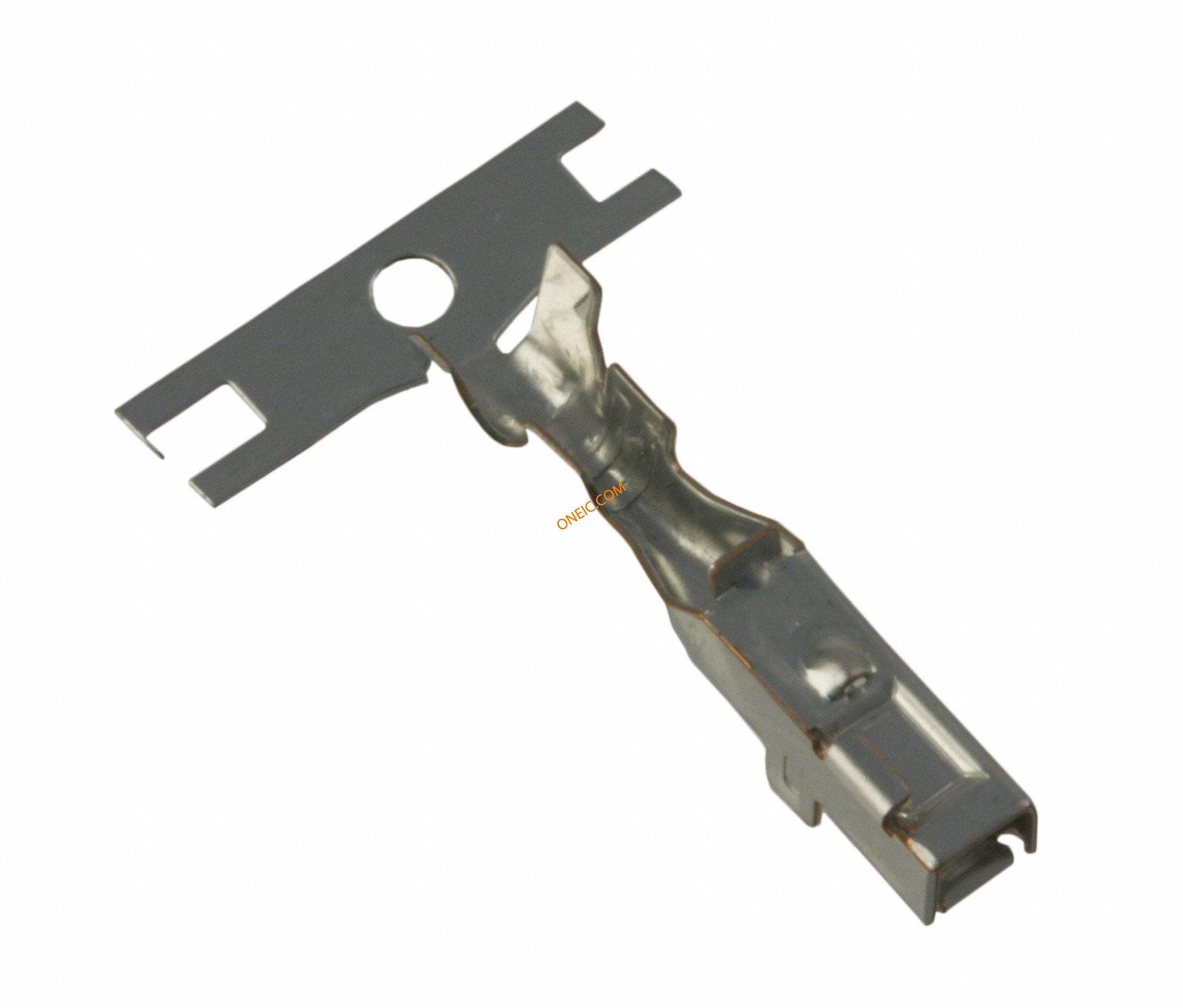

0504208000
