0510040200
| 制造商 | |

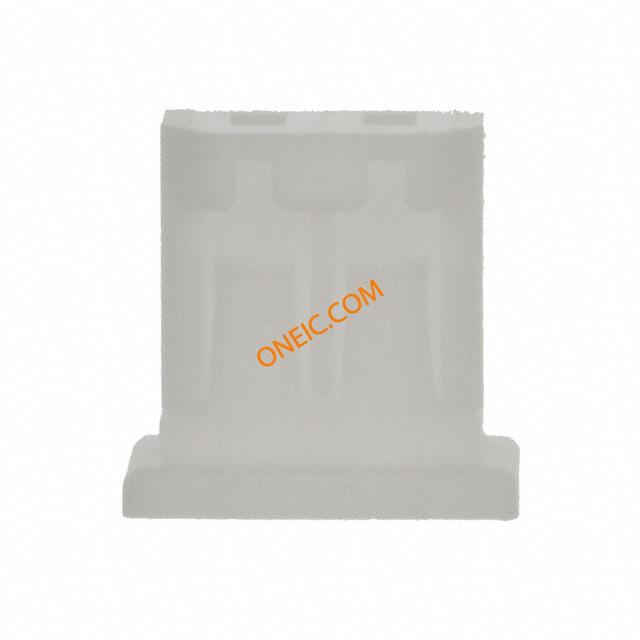

| 描述 | . 0510040200 - 2 Position Rectangular Housing Connector Receptacle Natural 0.079" (2.00mm) from Molex. from now! |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 61 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125VDC|125VAC |
| 最小供电电压 | 125VDC/125VAC | ||
机械参数
| 颜色 | Natural | 深度 | 5.8 mm |
| 间距 | 2 mm | 包装方式 | Bag |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 6 mm |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 51004-0200, 510040200 |
环境参数
| 工作温度 | -20C to 85C | ||
