点击放大查看

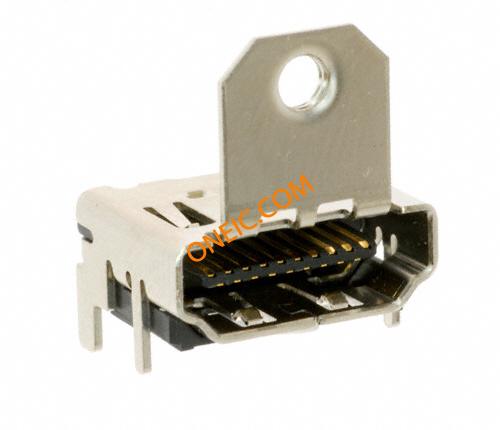

0471510002
| 制造商 | |
| 描述 | . 0471510002 - HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | 60 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 0.5/Contact A | 最小输入电压 | 40VDC |
| 最小供电电压 | 40VDC | ||
机械参数
| 深度 | 12.15 mm | 间距 | 0.5 mm |
| 高度 | 16.08 mm | 包装方式 | Tray |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 连接器类型 | HDMI | 接触镀层 | Gold Over Nickel |
| 安装样式 | Surface Mount | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 15 mm |
| 触点数 | 19 | ||
产品信息
| 类型 | HDMI | 连接器性别 | RCP |
| 已删除 | Compliant | 产品特性 | Detent Lock |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -20C to 85C | 结工作温度 | 85C |
