点击放大查看

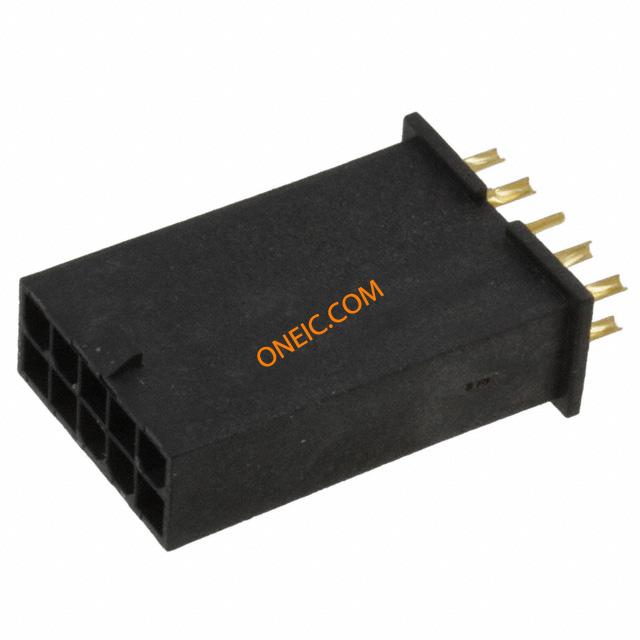

0442810004
| 制造商 | |
| 描述 | 0442810004 - 10 Position Rectangular Plug Connector Solder Gold from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2.5/Contact | 最小输入电压 | 600V |
机械参数
| 颜色 | Black | 间距 | 4.2 mm |
| 包装方式 | Bag | 导线类型 | Discrete |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Piston | 安装类型 | Through Hole |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Nylon 4/6 |
| 电缆端接方式 | Solder | 触点数 | 10 |
| 位数 | 10 | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | PL |
| 端口数 | 1 | ||
环境参数
| 工作温度 | 105 | ||
文档与媒体
