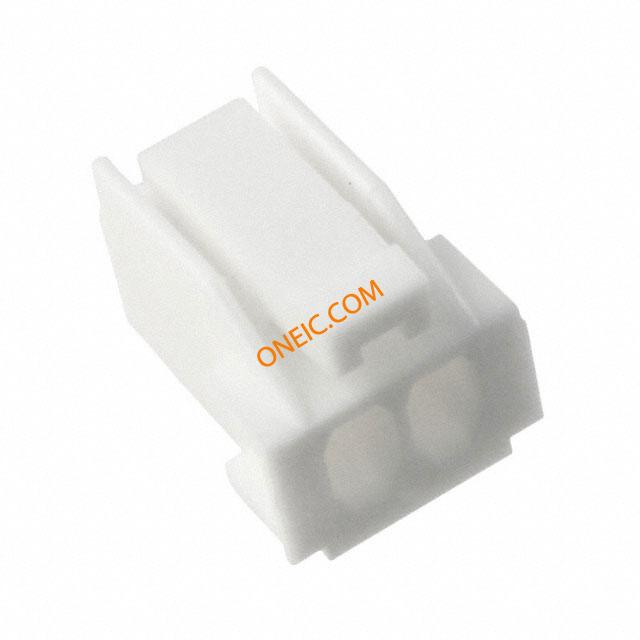

0351550200
| 制造商 | Molex, LLC |
| 描述 | . 0351550200 - 2 Position Rectangular Housing Connector Receptacle Natural 0.098" (2.50mm) from Molex. from now! |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Natural | 深度 | 10.5 mm |
| 间距 | 0.098" (2.50mm) | 高度 | 6.42 mm |
| 包装方式 | Bag | 触头类型 | Female Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 7.5 mm | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
PDF 文档
相关型号
0002065100
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG GOLD
¥1.5477
详情

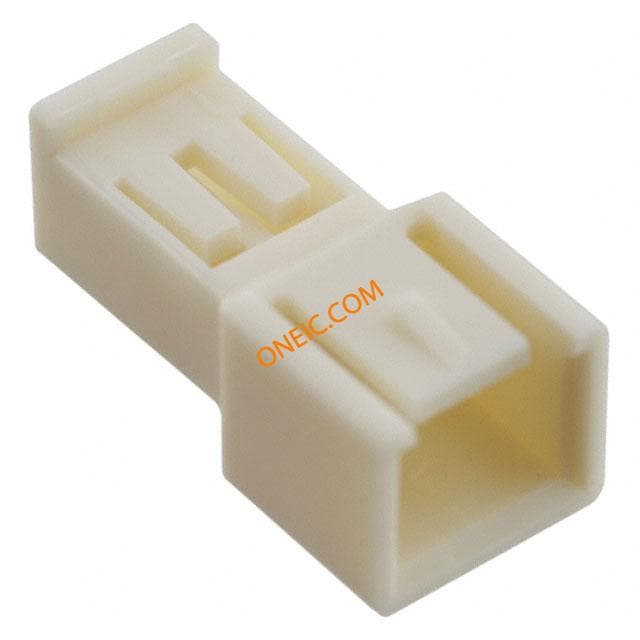

0351840200
