0008550129
| 制造商 | Molex, LLC |
| 描述 | Buy now, ships today. 0008550129 - Non-Gendered Contact Gold 24-30 AWG Crimp from Molex. View datasheets, pricing and availability from DigiKey now! |
| 分类 |
商业参数
| 交货时间 | 50 Days | 子类别 | Connector Contact |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 2.5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 2 mm | 间距 | Not Required mm |
| 高度 | 3.05 mm | 包装方式 | Bag |
| 导线线规 | 22-30 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Non-Gendered | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 11.2 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 行业别名 | 08-55-0129, 08550129, 8550129 | 适用产品/相关产品 | 0008550124 |
相关型号
0010112064
molex
Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount CONN HOUSING 6 POS
0010112104
molex
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount CONN HOUSING 10 POS
0010112023
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING 2POS .100 HI PRESS
0010112043
Molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Bag CONN HOUSING 4POS .100 HI PRESS
0011402251
molex
Connector Accessories Crimp Terminator Die Set Terminator Die With Crimp Function T8322C TERMINATOR ASSEMBLY
0010112144
molex
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount CONN HOUSING 14 POS
0010112033
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Bag Conn Housing F 3 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 3POS .100 HI PRESS
10-11-2093
molex
Conn Housing RCP 9 POS 2.54mm Crimp ST Bag CONN HOUSING 9POS .100 HI PRESS Headers & Wire Housings 9P HIGH PRESSURE 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 9 Circuits KK 100 Housing Crimp Ramp 9 Ckt
0638120000
Molex
Manual Insertion Hand Tool INSERTION TOOL

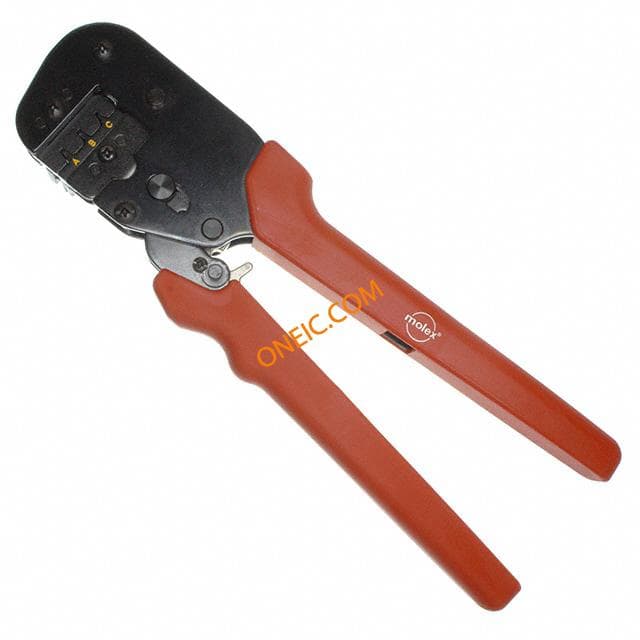

0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0010112114
Molex
Conn Housing RCP 11 POS 2.54mm Crimp ST Cable Mount CONN HOUSING 94V-0 11POS
0010112054
Molex
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount CONN HOUSING 5 POS
0010112044
Molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount CONN HOUSING 4 POS

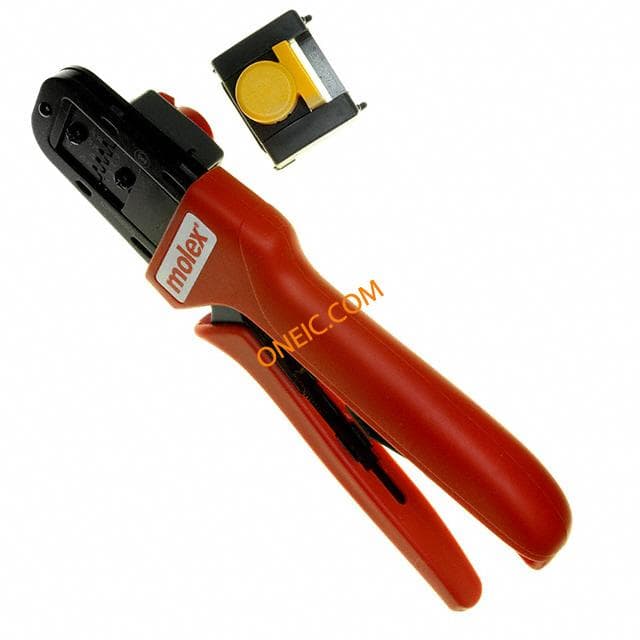

0638190800
Molex
Hand Crimp Tool TOOL HAND CRIMP 22-30AWG
0011030022
Molex
Extraction Tool Handtool Type TOOL EXTRACTION MOLEX .100 TERM Connector Accessories Extraction Tool
10-11-2053
Molex Connector Corporation
CONN HOUSING 5POS .100 HI PRESS 2.54mm,KK100,housing,f/ramp,nylon,5way Headers & Wire Housings HSG HIGH PRESSURE 5P 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 5 Circuits SOCKET, 2.54MM, 5WAY .100 KK Crimp Housing 5 Circuit Molex KK 254 系列 2.54mm 节距 5 路 直 母 压接连接器外壳

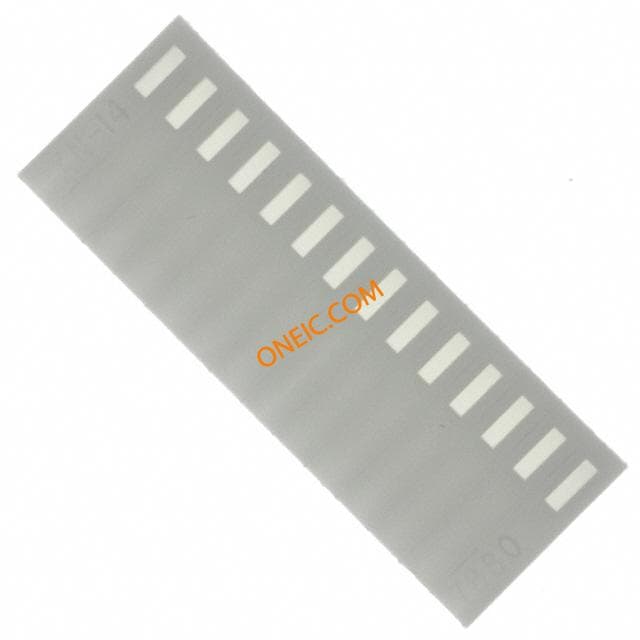

10-11-2143
