点击放大查看

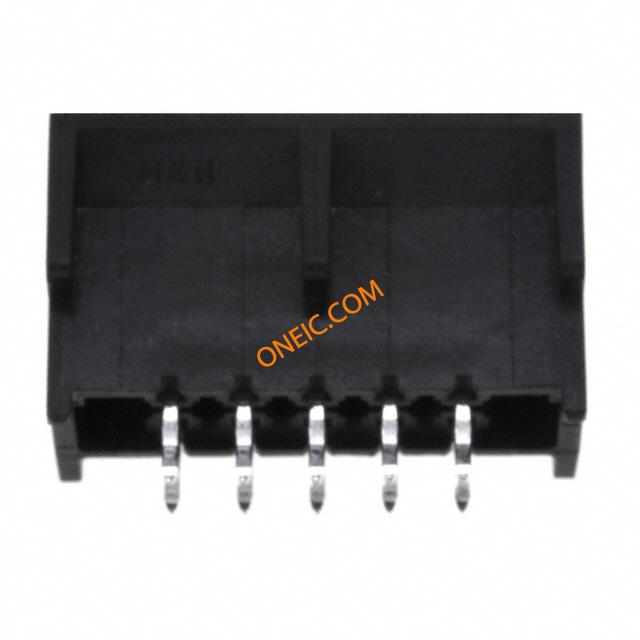

0444321001
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 10POS 3MM VERT TIN |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 包装方式 | Tray | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Press-Fit | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 排数 | 2 |
| 位数 | 10 | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 产品特性 | Board Guide | 加载位置数 | All |
