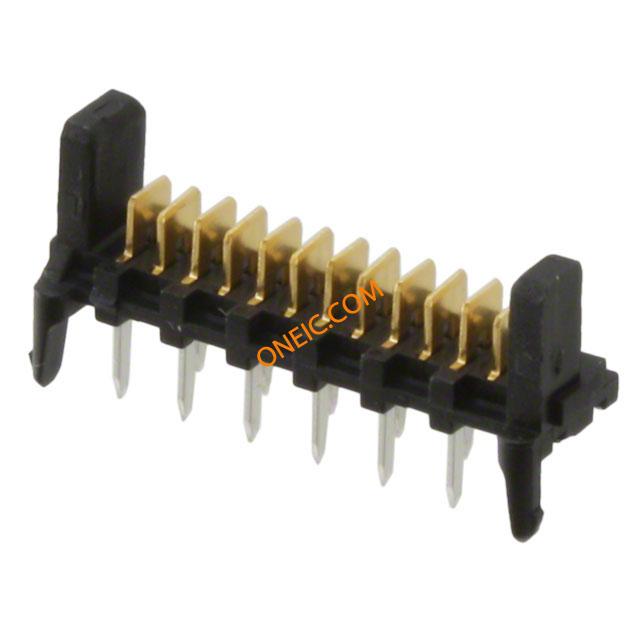

90325-7012
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 12PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 12P HDR AU R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 12 POS 1.27mm Solder ST Thru-Hole Tube |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903257012 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 3402 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 1.2 A |
机械参数
| 颜色 | Black | 间距 | 0.050" (1.27mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Blade Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Palladium-Nickel |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 12 | 位数 | 12 |
| 接触镀层厚度 | 24µin (0.60µm) | ||
产品信息
| 类型 | Unshrouded | 系列 | 90325 |
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 加载位置数 | All | ||
