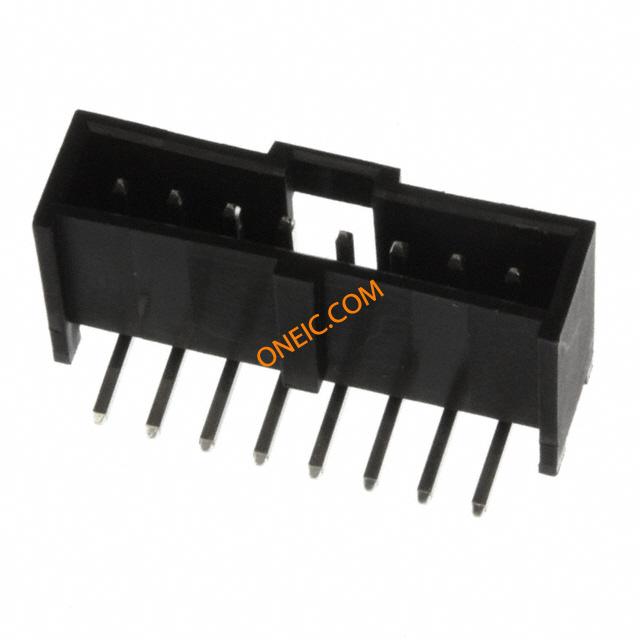

90136-2108
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 8POS .100" R/A TIN Headers & Wire Housings 8P SHROUDED HEADER 2.54mm Pitch C-Grid III™ Header, Single Row, Right Angle, Shrouded, 8 Circuits, 4µm Tin/Lead (Sn) over Nickel (Ni) |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901362108 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1040 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 350 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Latch Holder | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 8 |
| 位数 | 8 | 接触长度 - 配合 | 0.266" (6.75mm) |
| 接触镀层厚度 | 118.1µin (3.00µm) | ||
产品信息
| 类型 | Shrouded | 系列 | 90136 |
| 产品子类型 | Headers | 加载位置数 | All |
