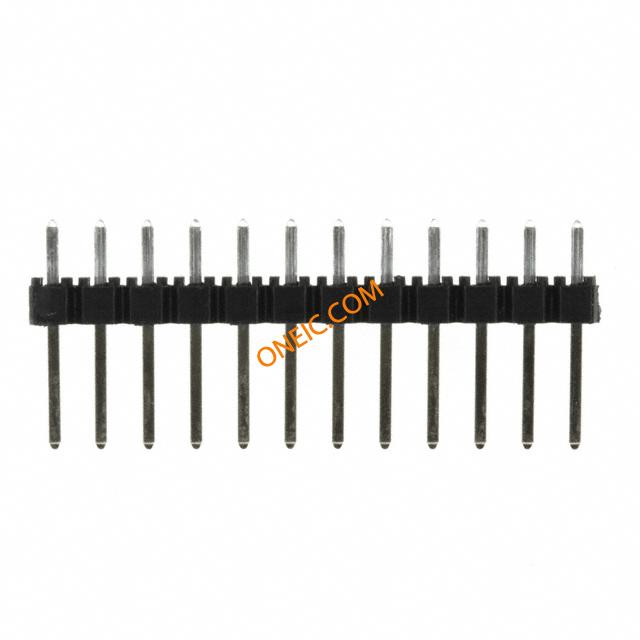

90120-0772
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 12POS .100" STR GOLD Molex 90120 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 12P VERT SR SEL AU Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 12路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901200772 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1200 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 350 V | 最大额定电流 | 3A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 方向 | 直 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 触点数 | 12 | 位数 | 12 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Unshrouded Header | 系列 | 90120 |
| 覆盖范围 | 无覆盖 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 基础产品编号 | 90120 |
| 加载位置数 | All | ||
