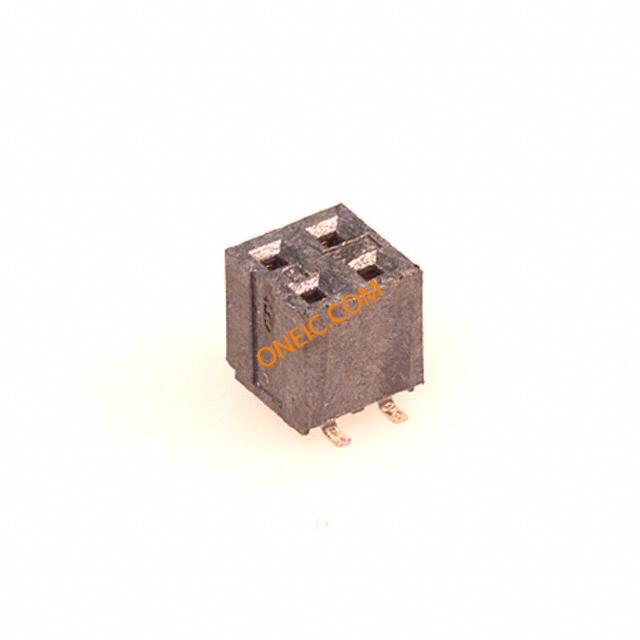

79109-1001
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 4POS 2MM VERT SMD Headers & Wire Housings 2MM RECEPT. 4 CKT Vert. Selective Gold Conn Socket Strip RCP 4 POS 2mm Solder ST SMD Tube |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0791091001 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 7936 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 125 V | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Surface Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | SMD | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 位数 | 4 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 系列 | 79109 | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
文档与媒体
相关型号
0877580416
molex
Conn Unshrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Tray CONN HEADER 4POS 2MM VERT GOLD
0877590474
Molex
Conn Unshrouded Header HDR 4 POS 2mm Solder ST SMD Embossed T/R CONN HEADER 4POS 2MM SMD Conn Board to Board HDR 4 POS 2mm Solder ST SMD Tube
87831-0420
Molex Connector Corporation
CONN HEADER 4POS 2MM VERT GOLD Molex 87831 Series 2mm Pitch 4 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings VERT SHRD HDR 4P Lead Free Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Tube HEADER, SQUARE PIN, M/GRID, 4WAY Molex MILLI-GRID 系列 2mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
87760-0416
Molex Connector Corporation
CONN HEADER 4POS 2MM R/A 15GOLD Headers & Wire Housings R/A HEADER 4P Lead Free Conn Unshrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Tray

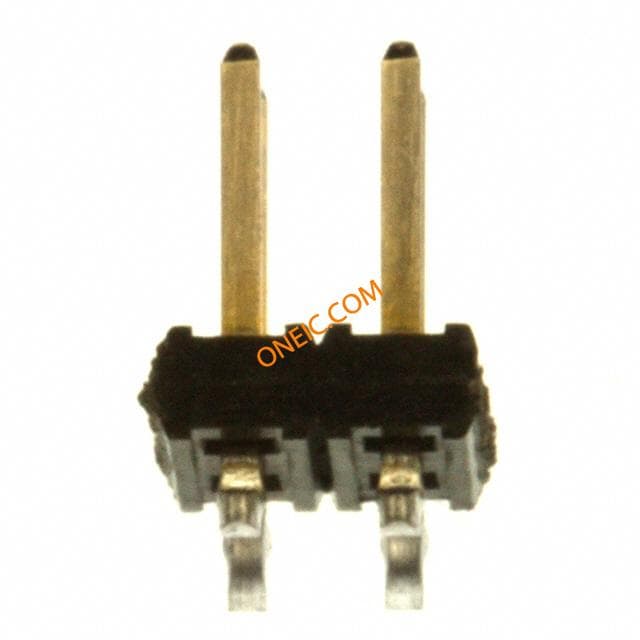

87759-0414
