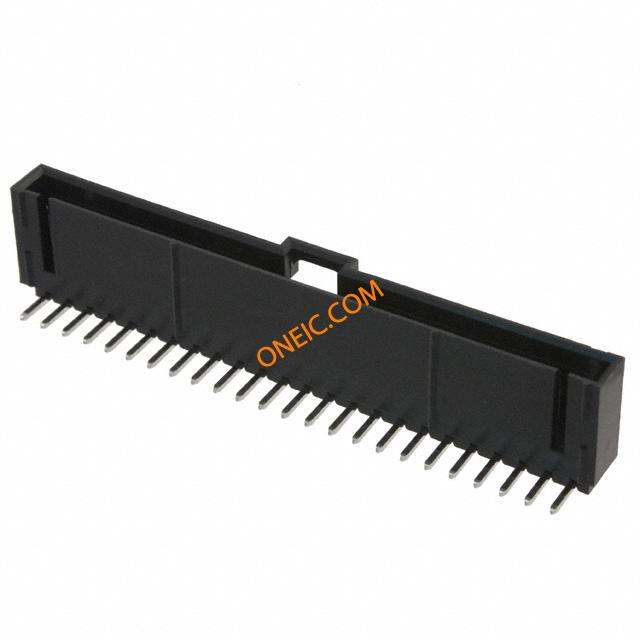

点击放大查看
70553-0058
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 24POS .100 R/A TIN Headers & Wire Housings CGrid SL Srd Hdr 120 Hdr 120 RA Tin 24Ckt Conn Shrouded Header HDR 24 POS 2.54mm Solder RA Thru-Hole Tube 2.54mm Pitch SL™ Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket, Shrouded, 24 Circuits, Tin (Sn) Plating |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0705530058 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 320 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 1 | 触点数 | 24 |
| 位数 | 24 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 类型 | Shrouded | 系列 | 70553 |
| 产品子类型 | Headers | 加载位置数 | All |
