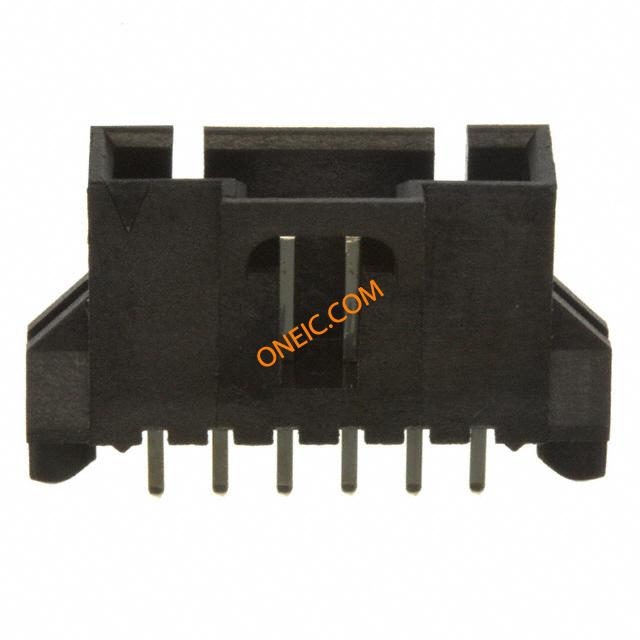

70545-0005

制造商	Molex, LLC
描述	CONN HEADER 6POS .100 VERT TIN Headers & Wire Housings VERT HDR TRI-PEG 6P SINGLE ROW TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	SL	零件号别名	0705450005
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1104

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

3 A

机械参数

颜色	Black	间距	0.100" (2.54mm)
包装方式	Tube	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole
连接器类型	Header, Shrouded	接触镀层	Tin
排数	1	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	端接样式	Through Hole
触点数	6	位数	6
接触长度 - 配合	0.240" (6.10mm)	接触镀层厚度	150µin (3.81µm)

产品信息

类型	Shrouded	系列	70545
产品特性	Board Guide	产品子类型	Headers
加载位置数	All

文档与媒体

PDF 文档

70545-0yyy

PDF 文档

Single Row (SL) Prod Spec

PDF 文档

0705450005_PCB_HEADERS.pdf
