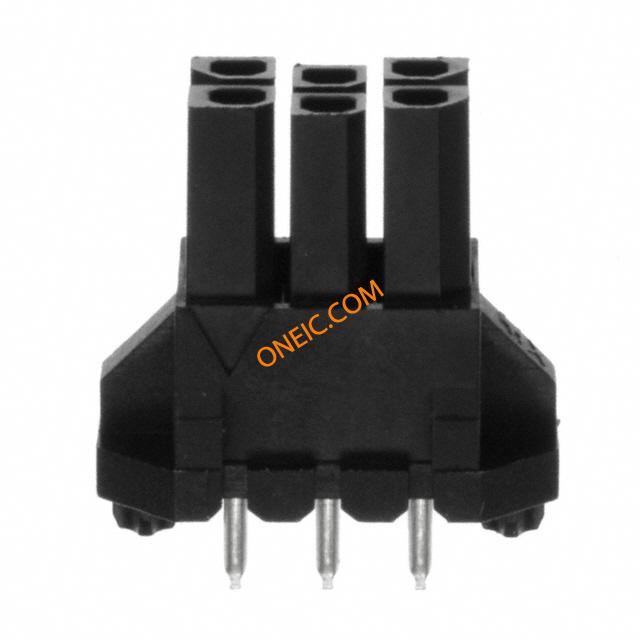

点击放大查看
44769-0602
| 制造商 | Molex, LLC |
| 描述 | CONN HDR RCPT 6POS 3MM VERT PCB Headers & Wire Housings VERT RECPT 6P gold w/friction pegs Conn Wire to Board RCP 6 POS 3mm Solder ST Thru-Hole Tray PCB socket Pitch3 mm Poles 2 x 3 Micro-Fit BMI, 44769-0602, Molex |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0447690602 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1980 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 250 V | 极数 | 2 x 3 |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 包装方式 | Tray | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Solder | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 引脚间距 | 0.118" (3.00mm) |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 端接样式 | Through Hole | 触点数 | 6 |
| 位数 | 6 | 第一连接器极性 | Female |
| 接触镀层厚度 | 15µin (0.38µm) | 每排/每行位置数 | All |
产品信息
| 类型 | PCB socket straight | 系列 | 44769 |
| 产品特性 | Board Guide | 主要用途 | Board Guide |
| 产品子类型 | Receptacles / Sockets - PCB | 连接方式 | Wire-Board |
| 输出配置 | Through Hole | 加载位置数 | All |
环境参数
| 工作温度 | -40...+105 °C | ||
