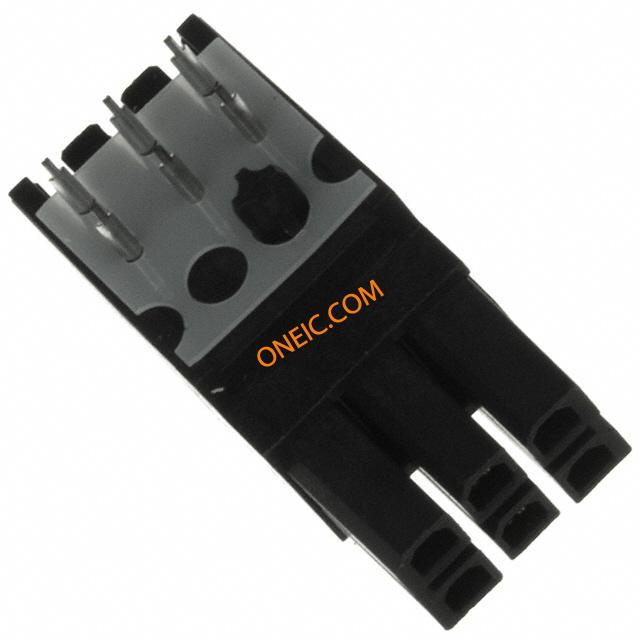

点击放大查看
44764-0602
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS 3MM R/A GOLD Headers & Wire Housings R.A. RECPT 6P gold w/friction pegs Conn Wire to Board RCP 6 POS 3mm Solder RA Thru-Hole Tray |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0447640602 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1360 | ||
合规参数
| RoHS | In Transition | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 包装方式 | Tray | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 端接样式 | Through Hole | 触点数 | 6 |
| 位数 | 6 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 系列 | 44764 | 产品特性 | Board Guide |
| 产品子类型 | Receptacles / Sockets - PCB | 加载位置数 | All |
