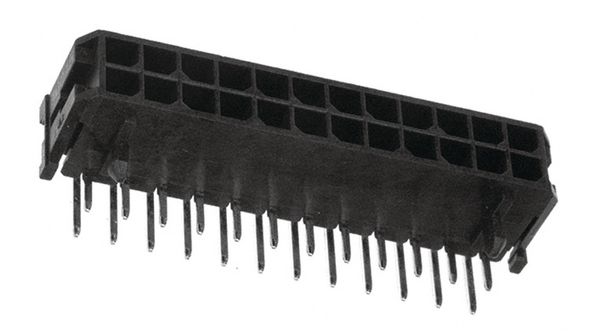

点击放大查看
43045-2400
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 24POS 3MM R/A TIN Molex 43045 Series 3mm Pitch 24 Way 2 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings 24 CKT R/A HEADER Conn Wire to Board HDR 24 POS 3mm Solder RA Thru-Hole Tray HEADER, RIGHT ANGLE, 24WAY MicroFit 3.0 RA Hdr W/TH DR Tin 24Ckt Male connector dual row 90° Pitch3 mm Poles 2 x 12 Micro-Fit, 43045-2400, Molex Molex MICRO-FIT 3.0 系列 3mm节距 24路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430452400 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 576 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - Micro-Fit 3.0 43045 Series | 额定电压 | 250 V ac/dc |
| 工作电压 | :250V | 最大额定电流 | 5A |
机械参数
| 间距 | 3mm | 重量 | 0.002 |
| 排间距 | 3 mm | 端接方式 | Solder |
| 引脚间距 | :3mm | 安装类型 | Right Angle |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Brass Alloy | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 24 |
| 接触件端接 | :Through Hole Right Angle | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Wire to Board | 连接器性别 | :Plug |
| 系列 | 43045 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Header Assemblies | ||
