点击放大查看

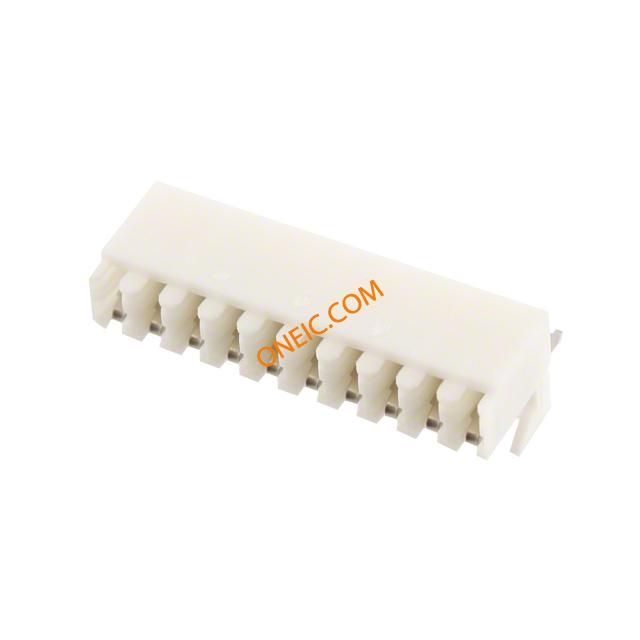

22-17-3102

制造商	Molex, LLC
描述	CONN RECEPT 10POS .100 VERT PCB Molex 2.54mm 10 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 10P BOTTOM ENTRY HDR Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Tray Molex KK 254 系列 10路直 2.54mm节距通孔印刷电路板插座, 插座板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022173102 A-4455-BH10D(208)
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1944

合规参数

RoHS

Compliant

电气参数

额定电压

250 V

最大额定电流

2.5A

机械参数

颜色	White	间距	0.100" (2.54mm)
包装方式	Tray	方向	直
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Receptacle, Bottom Entry
接触镀层	Gold	排数	1
触头材料	Brass	壳体材料	Nylon
端接排数	焊接	端接样式	Through Hole
第一触头极性	Socket (Female)	触点数	10
位数	10	接触镀层厚度	15µin (0.38µm)

产品信息

类型	Socket Strip	系列	4455
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - PCB
基础产品编号	4455	加载位置数	All

文档与媒体

PDF 文档

Resin Color 01/Jan/2002

PDF 文档

0022173102_PCB_RECEPTACLES.pdf
