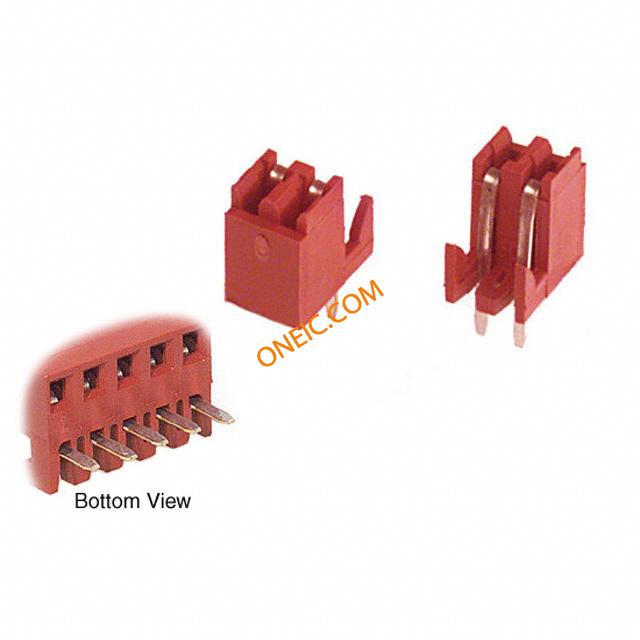

22-14-2024
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 2POS .100 VERT PCB Molex 2.54mm 2 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings PCB RECPT 2P BOTTOM ENTRY Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray Molex KK 254 系列 2路 直 2.54mm节距 通孔 印刷电路板插座, 插座板 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022142024 A-4455-BH02D(P909) |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 4608 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2.5A |
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tray | 方向 | 直 |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Bottom Entry |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 位数 | 2 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Socket Strip | 系列 | 4455 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - PCB |
| 基础产品编号 | 4455 | 加载位置数 | All |
