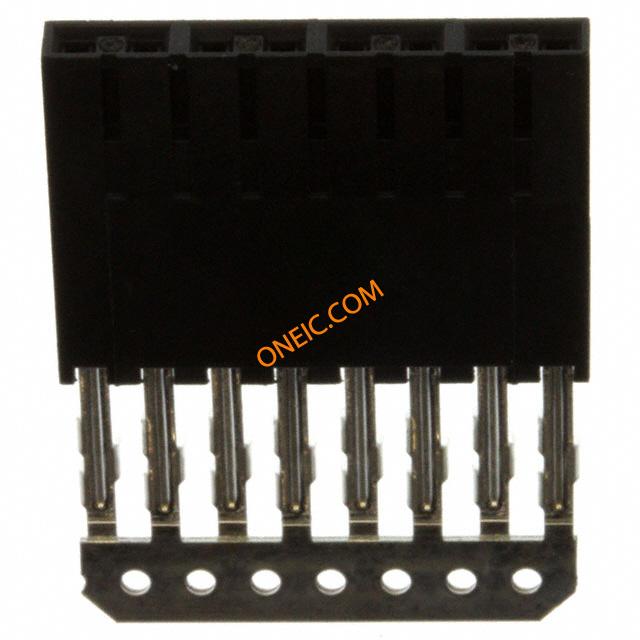

点击放大查看
15-38-8088
| 制造商 | Molex, LLC |
| 描述 | CONN FFC FEMALE 8POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt A Fem 8CKT TIN Conn FFC/FPC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0015388088 70430-0007 |
| 产品类别 | FFC & FPC Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 780 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 1 A, 2 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | IDC |
| 安装类型 | Vertical | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester, Glass Filled |
| 端接样式 | IDC | FFC/FCB厚度 | 0.30mm |
| 触点数 | 8 | 位数 | 8 |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 连接器性别 | Female | 系列 | 70430 |
| 产品子类型 | Free Hanging | ||
环境参数
| 工作温度 | -40°C ~ 105°C | ||
