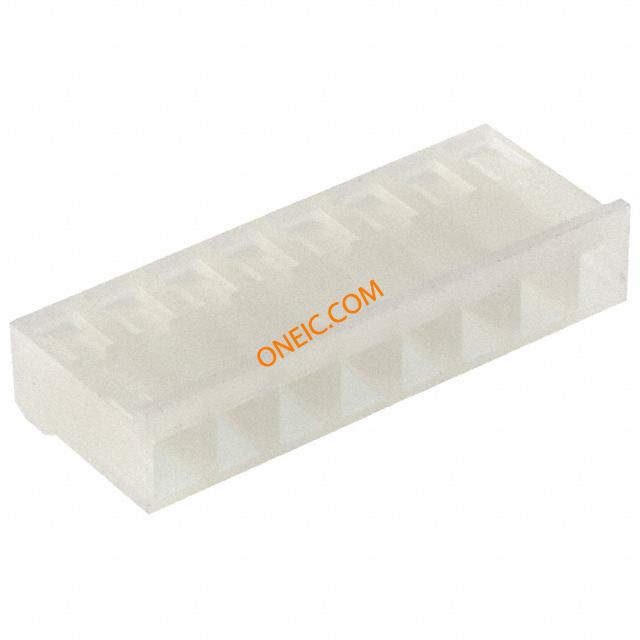

10-01-3086
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 8POS 5.08MM Crimp Housing 5.08mm SPOX,8way Headers & Wire Housings 5.08MM CRIMP HSG 8P 5.08mm Pitch SPOX™ Crimp Terminal Housing, 8 Circuits Molex SPOX 系列 5.08mm 节距 8 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | SPOX | 零件号别名 | 0010013086 5197-08 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | ||
机械参数
| 颜色 | Natural | 深度 | 16mm |
| 间距 | 0.200" (5.08mm) | 宽度 | 8.85mm |
| 长度 | 40.56mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 8 | 接触件端接 | Crimp |
| 位数 | 8 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 5197 | 产品子类型 | Receptacles / Sockets - Housings |
| 基础产品编号 | 5197 | 适用产品/相关产品 | SPOX Connector |
文档与媒体
相关型号
0008701031
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN Conn Contact RCP 1 POS Crimp ST Cable Mount Reel
10-02-1087
molex
Conn Unshrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole Bag CONN HEADER 8POS 5.08MM VERT TIN
08-70-1028
Molex
Headers & Wire Housings 22-28 CRIMP BULK CONN TERM FEMALE 22-28AWG TIN
0039000021
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0008701030
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG TIN Conn Contact RCP 1 POS Crimp ST Cable Mount Loose Piece
0039000022
Molex Inc
CONN TERM FEMALE 18-24AWG TIN Contact SKT Crimp ST Cable Mount Loose Piece

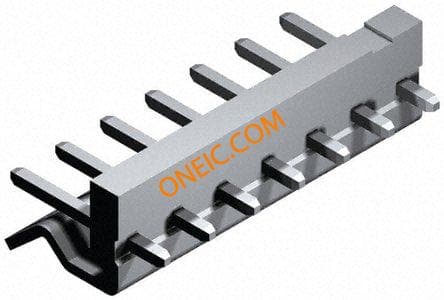

10-32-1081
Molex Connector Corporation
CONN HEADER 8POS 5.08MM VERT TIN Molex 5281 Series 5.08mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings SPOX .200 HDR 08P VT Conn Wire to Board HDR 8 POS 5.08mm Solder ST Thru-Hole Bag Molex SPOX 系列 5.08mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔
