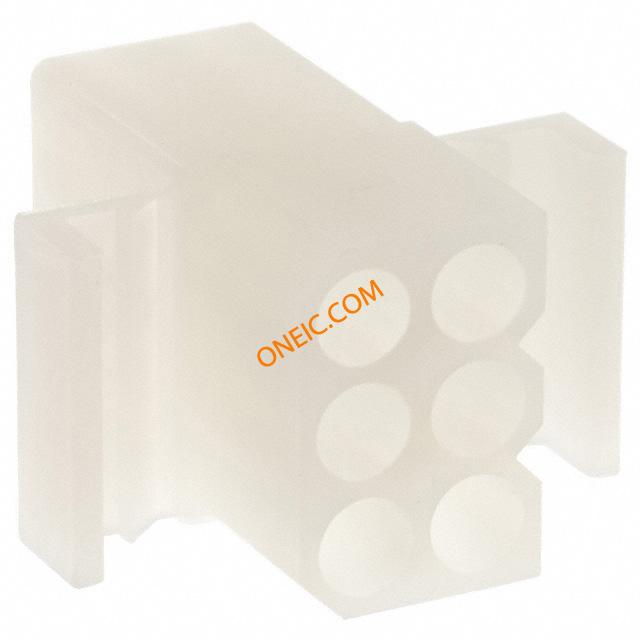

03-09-1061
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 6POS .093 PANEL MNT Molex 5.03mm 6 Way 2 Row Straight Female Housing Receptacle Pin & Socket Connectors 6 CIRCUIT RECEPTACLE Conn Housing RCP 6 POS 5.03mm Crimp ST Panel Mount Bag HOUSING, RECEPTACLE, 6 WAY, NYLON TERMINAL HOUSE; STD; RECEPT W/MNT EAR & DTENT LCK; 6 CIRCUIT Molex STANDARD .093" 系列 6路 (2行) 5.03mm节距 直 外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0003091061 1261-R 3091061 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 认证机构标志 | CSA, UL |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 11A |
机械参数
| 颜色 | Natural | 间距 | 0.198" (5.03mm) |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 排间距 | 0.198" (5.03mm) |
| 端接方式 | Crimp | 触头类型 | Male or Female |
| 安装类型 | Panel Mount, Snap-In | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 3 | 壳体材料 | Nylon |
| 总长度 | 1.05 " | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 连接器颜色 | :Natural |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 安装孔直径 | 0.718×0.6 " |
产品信息
| 备注 | Contacts Not Provided | 类型 | Panel Socket |
| 连接器性别 | Female | 系列 | 1261 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1261 Series |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1189, 1190, 1434, 1973 Crimp Terminals |
环境参数
| 工作温度 | :105°C | ||
