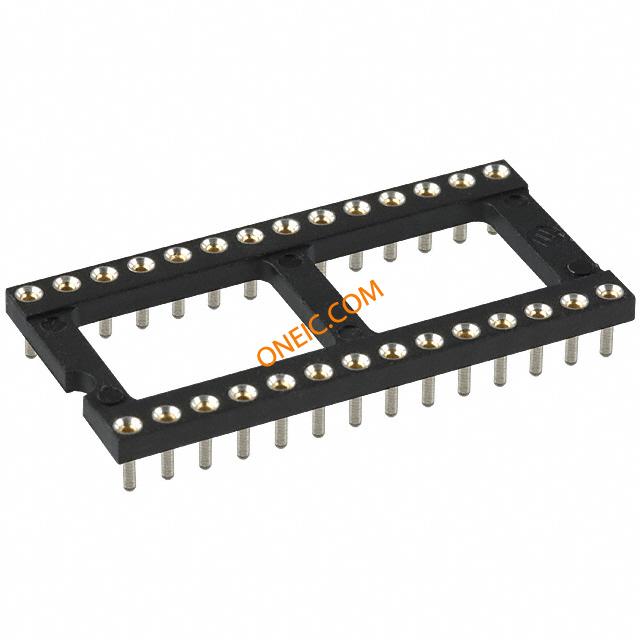

115-43-628-41-003000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN LOW PROFILE .600 IC & Component Sockets 28P TIN PIN GLD CONT SOCKET,DIP,OPEN,THRU-HOLE,HIGHTEMPINSULATOR,ULTRALOWPROFILE,28PIN |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 14 | 工厂包装数量 | 14 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 |
| 最小输入电压 | 150VDC|100VAC | ||
机械参数
| 深度 | 17.78 | 间距 | 0.100" (2.54mm) |
| 高度 | 2.41 | 底座类型 | Open Frame |
| 包装方式 | Tube | 排间距 | 15.24 mm |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 引脚数 | 28 (2 x 14) | 排数 | 2 |
| 封装形式 | DIP | 触头材料 | Beryllium Copper Alloy |
| 壳体材料 | Polychlorinated Terphenyl | 总长度 | 35.56 |
| 端接样式 | Solder Tail | 触点数 | 28 |
| 绝缘材料 - 类型 | Polychlorinated Terphenyl | 接触镀层厚度 | 30µin (0.76µm) |
| 位置或引脚数（网格） | 28 (2 x 14) | ||
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 系列 | 115...003 | 产品特性 | Open Frame |
| 主要用途 | Open Frame | 输出配置 | Through Hole |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
