点击放大查看

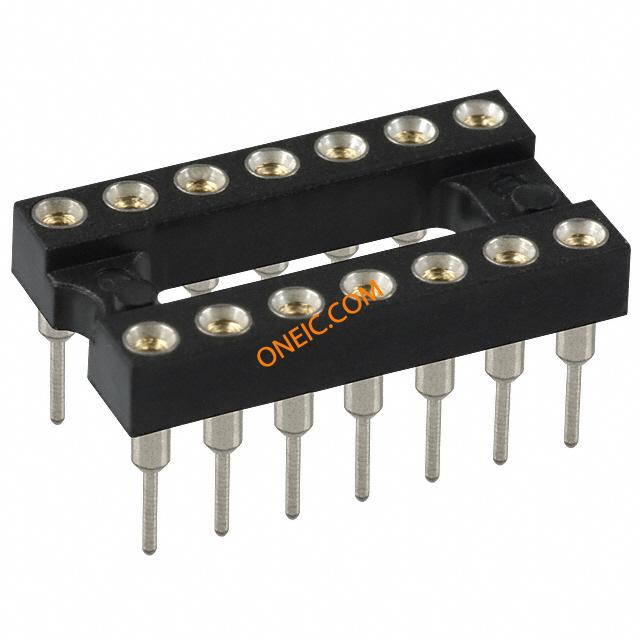

111-93-314-41-001000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 14DIP .300 TIN Socket; DIP;Open;4-Finger;14 Pos.;Solder;PCB;0.3In.;Ber. Copper;30muIn. Gold;3A IC & Component Sockets 14P LONG SOLDER TAIL Socket,DIP;Open;4-Finger;14Pos.;Solder;PCB;0.3In.;Ber.Copper;30muIn.Gold;3A |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 20 Days |
| 子类别 | Connector Socket | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 28 | 工厂包装数量 | 28 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Not Compliant |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 mohm |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 Mohm |
| 最小输入电压 | 150VDC|100VAC | ||
机械参数
| 深度 | 10.16 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 4.19 mm | 底座类型 | Open Frame |
| 包装方式 | Tube | 排间距 | 7.62 mm |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | DIP |
| 触头材料 | Beryllium Copper | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 17.78 mm | 端接样式 | Solder Tail |
| 触点数 | 14 | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 位数 | Not Required | 接触镀层厚度 | 30µin (0.76µm) |
| 位置或引脚数（网格） | 14 (2 x 7) | ||
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 已删除 | Not Compliant | 产品特性 | Open Frame |
| 适用产品/相关产品 | 111-13-314-41-001000111-43-314-41-001000 | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
