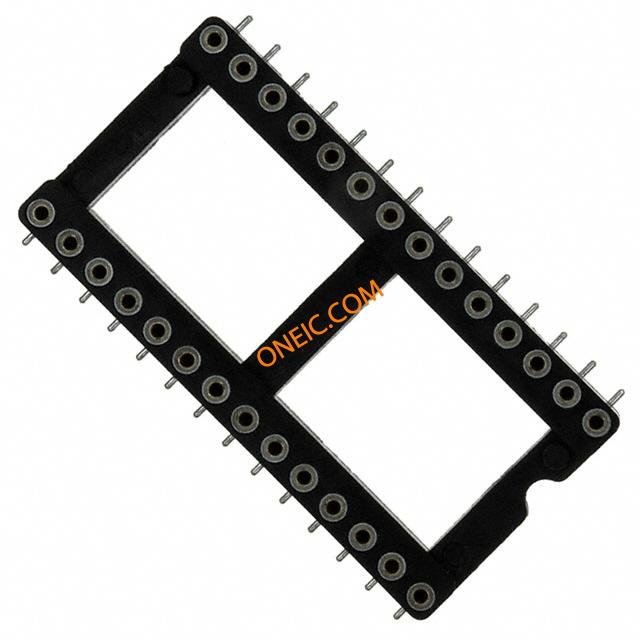

110-93-628-41-105000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 28 POS 2.54mm Solder ST SMD Tube SOCKET IC GULLWNG .600 28POS SMD Socket; DIP;28Pins;Gull Wing;Open;0.6In.;Gold;SMD;0.125In.;3A;-25 to +85degC;UL IC & Component Sockets 28P DUAL SOCKET Socket,DIP;28Pins;GullWing;Open;0.6In.;Gold;SMD;0.125In.;3A;-25to+85degC;UL |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 20 Days |
| 子类别 | Connector Socket | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 28 | 工厂包装数量 | 28 |
合规参数
| RoHS | Not Applicable | 欧盟RoHS | Not Compliant |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 150VDC | 接触电阻 | 10 mohm |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 Mohm |
| 最小输入电压 | 150VDC | ||
机械参数
| 深度 | 17.7 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 5.59 mm | 底座类型 | DIP |
| 包装方式 | Tube | 排间距 | 15.24 mm |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 接触镀层 | Gold Over Nickel | 安装样式 | PCB |
| 引脚数 | 28 (2 x 14) | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 35.5 mm | 端接样式 | Through Hole |
| 触点数 | 28 | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 位数 | Not Required | 接触镀层厚度 | 30µin (0.76µm) |
| 位置或引脚数（网格） | 28 (2 x 14) | ||
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 系列 | 110...105 | 产品特性 | Open Frame |
| 主要用途 | Open Frame | 输出配置 | Surface Mount |
| 适用产品/相关产品 | 110-43-628-41-105000 | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
