点击放大查看

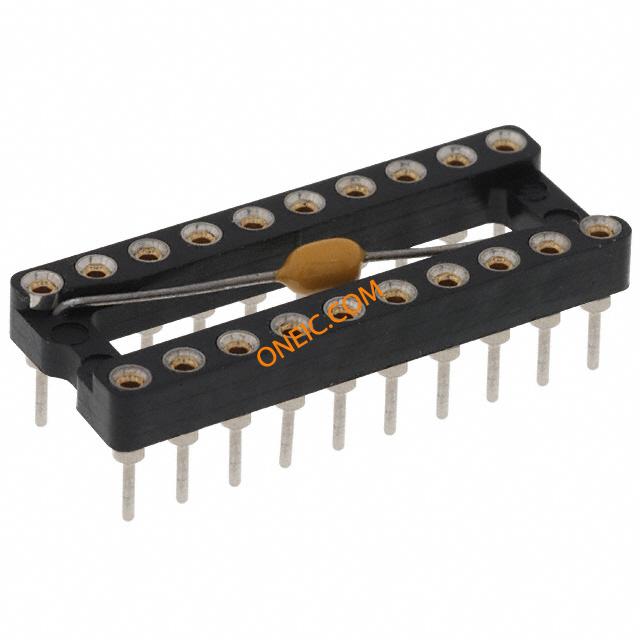

110-93-320-41-801000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 20 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET W/CAP TIN MS ST 20 PIN Socket; DIP;Open;4-Finger;20 Pos.;Solder;0.3In.;30muIn. Gold;50V;3A;-25 to 85deg IC & Component Sockets 20P TIN PIN GLD CONT DIP SOCKET, 20POS, THROUGH HOLE Socket,DIP;Open;4-Finger;20Pos.;Solder;0.3In.;30muIn.Gold;50V;3A;-25to85deg |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 20 Days |
| 子类别 | Connector Socket | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Not Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 mohm |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 Mohm |
| 最小输入电压 | 150VDC|100VAC | ||
机械参数
| 深度 | 10.16 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 4.19 mm | 重量 | 0.002 |
| 底座类型 | Open Frame | 包装方式 | Tube |
| 排间距 | 7.62 mm | 端接方式 | Solder |
| 柱间距 | :7.62mm | 安装类型 | Through Hole |
| 连接器类型 | :DIP Socket | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | DIP | 触头材料 | Beryllium Copper Alloy |
| 壳体材料 | Polychlorinated Terphenyl | 总长度 | 25.3 mm |
| 端接样式 | Solder Tail | 触点数 | 20 |
| 接触件端接 | :Through Hole Vertical | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 位数 | Not Required | 接触镀层厚度 | 30µin (0.76µm) |
| 位置或引脚数（网格） | 20 (2 x 10) | ||
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 系列 | :- | 产品特性 | Open Frame, Decoupling Capacitor |
| 适用产品/相关产品 | 110-13-320-41-801000110-43-320-41-801000 | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
文档与媒体
相关型号
MFR-2241
OK International
Soldering Irons DUAL OUTPUT 1 PREC TWZR 1 CARTR HP SYSTEM SOLDERING 2OUT 100/240VAC OK International 240V Desoldering Tweezers, 60W Dualoutputw.precisionTweezers,SolderingHandpieceandworkstands
MFR-2211
OK International
Soldering Irons Dual Output 2 Cart Soldering Iron HPs SYSTEM SOLDER 2OUTPUT 100/240VAC OK International, 2 Output Soldering Station, 60W DualOutput,twocartridgessolderinghandpieces
142-90-320-00-594000
Mill-Max
Headers & Wire Housings 20P DIP HDR OPEN FRAME .835L Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS
142-90-320-00-593000
Mill-Max
Headers & Wire Housings 20P DIP HDR OPEN FRAME .585L Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS
142-90-320-00-591000
Mill-Max
Headers & Wire Housings 20P DIP HDR OPEN FRAME .210L Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS
142-90-320-00-592000
Mill-Max
Headers & Wire Housings 20P DIP HDR OPEN FRAME .335L HEADER OPEN .018"DIA .300 20POS
MFR-2211
Metcal
Soldering Irons Dual Output 2 Cart Soldering Iron HPs MFR 2200 Series Dual Output Rework System with Two MFR-H1-SC Cartridge Handpieces Metcal 2输出 240V 焊接工作站, F 型 - Schuko 插头，G 型 - 英式 3 引脚
151-10-320-00-011000
Mill-Max
Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS Headers & Wire Housings 20P DIP HDR OPEN FRAME .606L
142-10-320-00-594000
Mill-Max
Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS Headers & Wire Housings 20P DIP HDR OPEN FRAME .835L
142-10-320-00-593000
Mill-Max
Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS Headers & Wire Housings 20P DIP HDR OPEN FRAME .585L
142-10-320-00-591000
Mill-Max
Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS Headers & Wire Housings 20P DIP HDR OPEN FRAME .210L
153-10-320-00-001000
Mill-Max
Conn DIP Adapter HDR 20 POS 2.54mm Wire Wrap ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS Headers & Wire Housings 20P DIP HDR 3 LEVEL WRAPOST
151-10-320-00-010000
Mill-Max
Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS Headers & Wire Housings 20P DIP HDR OPEN FRAME .331L
142-10-320-00-592000
Mill-Max
Conn DIP Adapter HDR 20 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 20POS Headers & Wire Housings 20P DIP HDR OPEN FRAME .335L
151-10-320-00-009000
Mill-Max Manufacturing Corp.
HEADER OPEN .018"DIA .300 20POS Headers & Wire Housings 20P DIP HDR OPEN FRAME .252L

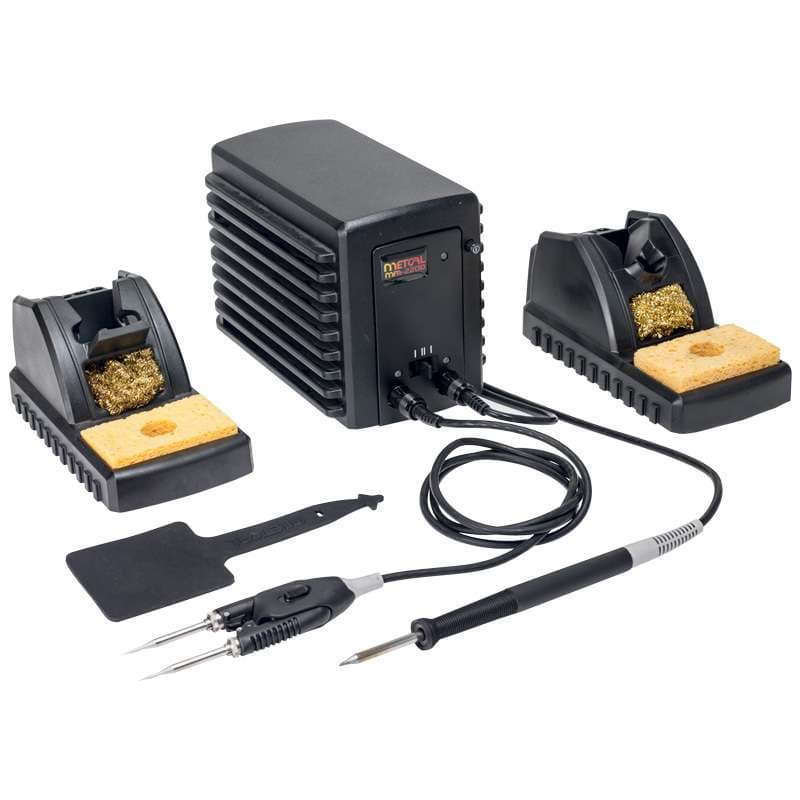

MFR-2241
