110-43-314-41-001000

制造商	Mill-Max Mfg. Corp.
描述	Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 14 PIN .300 GOLD IC & Component Sockets 14P TIN PIN GLD CNT DIP SOCKET, 14POS, THROUGH HOLE
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	DIP / SIP Sockets	产品类别	IC & Component Sockets
标准包装数量	28	工厂包装数量	28

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010	抗辐射加固	No
材料阻燃等级	UL 94 V-0

电气参数

额定电压	1 kV	接触电阻	10 mohm
最大额定电流	3 A	绝缘电阻	10000 Mohm
最小输入电压	150VDC\|100VAC

机械参数

深度	10.1 mm	间距	0.100" (2.54mm)
高度	4.19 mm	重量	0.002
底座类型	Open Frame	包装方式	Tube
排间距	7.62 mm	端接方式	Solder
柱间距	:7.62mm	安装类型	Through Hole
连接器类型	:DIP Socket	接触镀层	Gold Over Nickel
安装样式	Through Hole	排数	2
封装形式	DIP	触头材料	Beryllium Copper Alloy
壳体材料	Polychlorinated Terphenyl	总长度	17.7 mm
端接样式	Solder Tail	触点数	14
接触件端接	:Solder	绝缘材料 - 类型	Polychlorinated Terphenyl
位数	Not Required	接触镀层厚度	30µin (0.76µm)
位置或引脚数（网格）	14 (2 x 7)

产品信息

类型	DIP Socket	连接器性别	SKT
系列	:110	产品特性	Open Frame

环境参数

工作温度

- 55 C to + 125 C

文档与媒体

PDF 文档

090-259652.pdf

相关型号

PS-900

OK International

Soldering Irons SOLDERING SYSTEM SYSTEM SOLDERING PS-900 OK International, 1 Output 240V ac Soldering Station, 90W SolderingSystemw/powersupply,handpiecewcordandassembly&workstand

¥2319.3440

详情

暂无图片

142-90-314-00-593000

Mill-Max

Headers & Wire Housings 14P DIP HDR OPEN FRAME .585L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS

¥19.8288

详情

暂无图片

142-90-314-00-594000

Mill-Max

Headers & Wire Housings 14P DIP HDR OPEN FRAME .835L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS

¥32.1300

详情

暂无图片

142-90-314-00-591000

Mill-Max

Headers & Wire Housings 14P DIP HDR OPEN FRAME .210L Conn DIP Adapter HDR 14 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 14POS

¥9.4520

详情

PS-900

Metcal

Soldering Irons SOLDERING SYSTEM SmartHeat® ESD-Safe High Powered Thermal Control Soldering System for Lead-Free Processes Soldering station PS-900 90 W F (CEE 7/4), PS-900, Metcal Metcal 1输出 240V 焊接工作站, F 型 - Schuko 插头，G 型 - 英式 3 引脚

¥1680.2500

详情

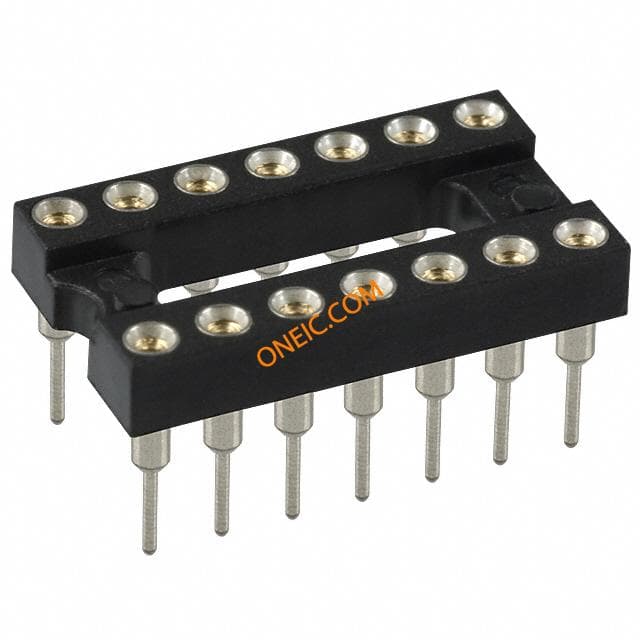

111-43-314-41-001000
