点击放大查看

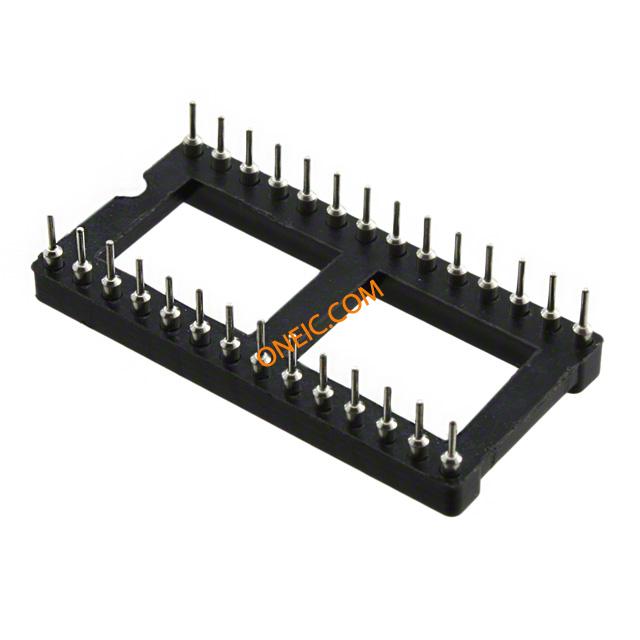

110-41-628-41-001000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube CONN DIP OPEN FRAME .015-.025" IC & Component Sockets 28 PIN SKT 200u Sn |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 14 | 工厂包装数量 | 14 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 3 |
| 绝缘电阻 | 10000 | 最小输入电压 | 150VDC|100VAC |
机械参数
| 深度 | 17.7 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.19 | 包装方式 | Tube |
| 排间距 | 15.24 | 端接方式 | Solder |
| 安装类型 | Through Hole | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Beryllium Copper Alloy |
| 壳体材料 | Polychlorinated Terphenyl | 总长度 | 35.5 |
| 触点数 | 28 | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 接触镀层厚度 | 10µin (0.25µm) | 位置或引脚数（网格） | 28 (2 x 14) |
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 产品特性 | Open Frame | ||
