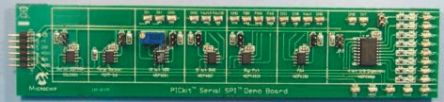

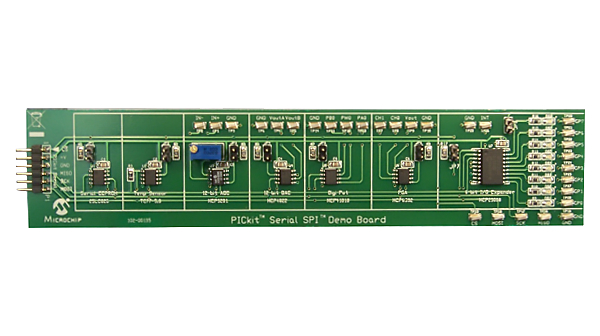

PKSERIAL-SPI1
| 制造商 | Microchip Technology Inc. |
| 描述 | PICKIT Serial Spi DEMO Board Interface Development Tools PICkit Serial SPI demo Brd PICkit Serial SPI demo board BOARD DEMO PICKIT SERIAL SPI PKSERIAL-SPI1, Development Kit, Serial-SPI, CD with Documentation, PICkit Serial SPI Demonstration Board PICKIT, SERIAL SPI, DEMO BOARD PICkit Serial SPI Demo Board, PKSERIAL-SPI1, Microchip Microchip PICkit 串行 SPI接口 演示板, 使用于 PICkit 串行分析仪 |
| 分类 |
商业参数
| 最小起订量 | 4 | 产品 | Demonstration Boards |
| 单位包装 | 1 | 其他名称 | PKSERIALSPI1 |
| 产品类别 | Interface Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :PIC | 接口 | SPI |
| 元件数量 | :(Not Applicable) | ||
机械参数
| 重量 | 0.4 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :Seven Unique Devices with SPI Interfaces |
| 功能 | The PICkit Serial SPI Demo Board was designed to easily connect to the PICkit Serial Analyzer (DV164122) | 技术 | Serial-SPI |

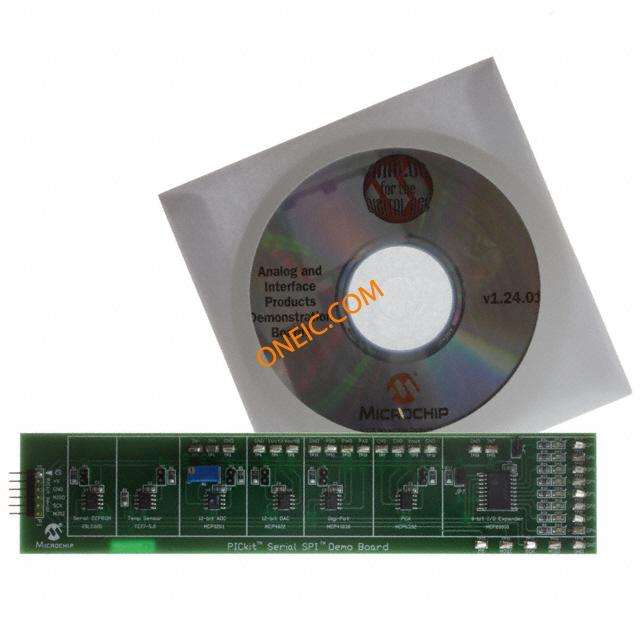

| 套件内容 | CD with Documentation, PICkit Serial SPI Demonstration Board | 主要用途 | Interface, SPI Devices, 7 |
| 制造商全称 | :(Not Available) | 卡标准 | Development Kit |
| 工具类型/特性 | 25LC020A, TC77-5.0, MCP3201, MCP4822, MCP41010, MCP6S92, MCP23S08 | 主要特性 | SPI ADC, DAC, Digital Pot, EEPROM, I/O Expander, Temp Sensor, PGA |
| 使用的IC/零件 | PICkit™ 1 | 芯片组制造商 | :Microchip |
| 次要特性 | 8 LEDs | 支持MCU系列 | :25LC020A, TC77-5.0, MCP3201, MCP4822 |
| 适用产品/相关产品 | DV164122 | ||
