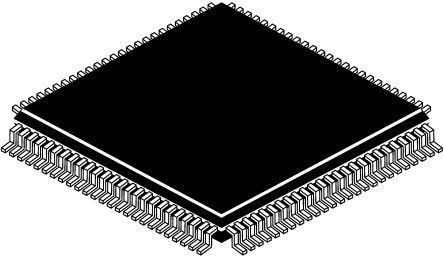

点击放大查看
PIC32MX340F128L-80I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 32-bit PIC32 PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray 128 KB Flash, 32 KB RAM, 80 MHz, 10- IC MCU 32BIT 128KB FLASH 100TQFP PIC32MX340F128L-80I/PT, 32 bit Microcontroller PIC 80MHz 12 kB, 128 kB Flash, 32kb RAM, I2C SPI 100-Pin TQFP 32-bit Microcontrollers - MCU 128KB Flash 32KBRAM 80MHz 10B ADC DMA 32BIT, MCU, 128K FLASH, 32K RAM, 100TQFP 100Pin,128KBFlash,32KBRAM,80MHz,10-BitADC,DMA Microcontroller 32 Bit TQFP-100, PIC32MX340F128L-80I/PT, Microchip Microchip PIC32MX 系列 32 bit PIC MCU, 80MHz, 12 kB、128 kB ROM 闪存, 32 kB RAM, 100针 TQFP封装 32 bit MCU TQFP100 |
| 分类 |
商业参数
| 最小起订量 | 184 | 单位包装 | 119 |
| 其他名称 | PIC32MX340F128L80IPT | 产品类别 | 32-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 119 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 认证机构 | No | ||
电气参数
| 输入端 | 85 | 转速 | 80 MHz |
| 定时器 | 5 x 16 bit | 存储器 | 128KBytes |
| RAM 大小 | 32 KB | 内核大小 | 32-Bit |
| 核心类型 | PIC | 频率 | :80MHz |
| 接口 | I2C/SPI/UART/USB | 时钟速率 | 80 MHz |
| 比较器数量 | 2 | 存储器容量 | 32 KB |
| 存储器类型 | Flash | I/O 数量 | 85 |
| 电压范围 | 2.3-3.6V | 位数 | 10 |
| 额定电压 | 2.3 → 3.6 V | 看门狗定时器 | 1 |
| 时钟频率 | :80MHz | 数据转换器 | A/D 16x10b |
| 最大频率 | 80MHz | DAC数量 | 5 |
| 振荡器类型 | Internal | 串行协议 | 2 |
| 供电电压 | 2.5|3.3 V | 分辨率（位） | 10bit |
| 串行接口 | 2-EUART,2-SPI,2-I2C | 通道数量 | 0 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 128 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 16 | 最小供电电压 | 3.6 |
| 频率（中心/带宽） | 16bit | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2.3 V ~ 3.6 V | ||
机械参数
| 宽度 | 12mm | 高度 | 1.05mm |
| 长度 | 12mm | 重量 | 0.006667 |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :100 |
| 封装形式 | 100TQFP | 冷却的封装 | TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 12 |
| 包装数量 | TQFP | 尺寸/外形 | 12 x 12 x 1.05mm |
| 位数 | 100 | 外壳尺寸-插件 | 1 |
| 供应商器件封装 | 100-TQFP (12x12) | 核心数/总线宽度 | 32 Bit |
| 脉冲宽度失真（最大） | 5(CCP) | ||
产品信息
| SPI | 2 | USB | 2 |
| 系列 | PIC32MX3 | 协议 | 2 |
| 闪存大小 | :128KB | 片内RAM（通道数×位宽） | 16-chx10-bit |
| 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, IrDA, LIN, PMP, SPI, UART/USART | 核心处理器 | MIPS32® M4K™ |
| 定时器数量 | 5 | 控制器系列 | :PIC32 |
| 射频系列/标准 | PIC32 | DigiKey可编程 | Yes |
| 印刷电路板数量 | 100 | A/D转换器数量 | :16 |
环境参数
| 工作温度 | -40 to 85 °C | ||
