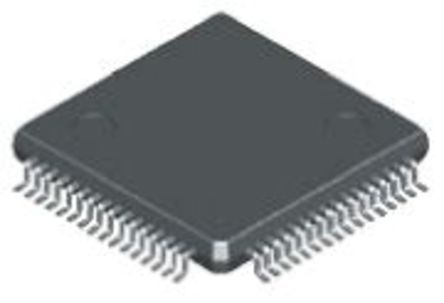

点击放大查看
PIC32MX340F128H-80I/MR
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 32-bit PIC32 PIC RISC 128KB Flash 2.5V/3.3V 64-Pin QFN EP Tube 32-bit Microcontrollers - MCU 128KB/32KB RAM 80 MHz 10-b ADC 128 KB Flash, 32 KB RAM, 80 MHz, 10- IC MCU 32BIT 128KB FLASH 64QFN PIC32MX340F128H-80I/MR, 32 bit Microcontroller PIC 80MHz 12 kB, 128 kB Flash, 32kb RAM, I2C SPI 64-Pin QFN 64Pin,128KBFlash,32KBRAM,80MHz,10-BitADC PIC microcontroller; SRAM:32kB; 80MHz; QFN64; 2.3÷3.6V Microchip PIC32MX 系列 32 bit PIC MCU, 80MHz, 12 kB、128 kB ROM 闪存, 32 kB RAM, 64针 QFN封装 |
| 分类 |
商业参数
| 最小起订量 | 160 | 产品 | MCU |
| 单位包装 | 40 | 产品类别 | 32-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 认证机构 | No |
电气参数
| 输入端 | 53 | 转速 | 80 MHz |
| 定时器 | 5 x 16 bit | 存储器 | 128KBytes |
| RAM 大小 | 32 KB | 内核大小 | 32-Bit |
| 核心类型 | PIC | 频率 | 80 MHz |
| 接口 | I2C/SPI/UART/USB | 时钟速率 | 80 MHz |
| 比较器数量 | 2 | 分辨率 | 10Bit |
| 存储器容量 | 32 KB | 存储器类型 | Flash |
| I/O 数量 | 53 | 电压范围 | 2.3-3.6V |
| 计数器/定时器 | 5 | 位数 | 10 |
| 额定电压 | 2.3 → 3.6 V | 看门狗定时器 | 1 |
| 数据转换器 | A/D 16x10b | FPGA 核心单元数 | PIC |
| 最大频率 | 80MHz | DAC数量 | 5 |
| 振荡器类型 | Internal | 串行协议 | 2 |
| 供电电压 | 2.5|3.3 V | 分辨率（位） | 10bit |
| 通道数量 | 16 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 0Bytes | 程序存储器大小 | 128 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 16 |
| 最小供电电压 | 2.3 V | 频率（中心/带宽） | 16bit |
| 计数器/定时器数量 | 5 Timer | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2.3 V ~ 3.6 V | ||
机械参数
| 宽度 | 9mm | 高度 | 0.95mm |
| 长度 | 9mm | 重量 | 1.19 g |
| 包装方式 | Tube | 引脚样式 | No Lead |
| 安装类型 | Surface Mount | 连接器类型 | 2 |
| 安装样式 | SMD/SMT | 引脚数 | 64 |
| 封装形式 | 64QFN EP | 冷却的封装 | QFN |
| 总长度 | 9 | 包装数量 | QFN EP |
| 尺寸/外形 | 9 x 9 x 0.95mm | 触点数 | 1 |
| 位数 | 64 | 外壳尺寸-插件 | 0.88 |
| 供应商器件封装 | 64-QFN (9x9) | 核心数/总线宽度 | 32 Bit |
| 脉冲宽度失真（最大） | 5(CCP) | ||
产品信息
| SPI | 1 | SPG | 10 |
| USB | 2 | 类型 | PIC microcontroller |
| 系列 | PIC32MX3 | 功能 | Y |
| 协议 | 2 | 片内RAM（通道数×位宽） | 16-chx10-bit |
| 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, IrDA, LIN, PMP, SPI, UART/USART | 制造商全称 | Microchip Technology |
| 架构类型 | RISC | 可编程性 | Yes |
| 核心处理器 | MIPS32® M4K™ | 内置振荡器 | 32kHz, 8MHz |
| 单元数量 | 1 | 定时器数量 | 5 |
| 定时器分辨率 | 16Bit | 射频系列/标准 | PIC32 |
| DigiKey可编程 | Yes | 宏单元数量 | 1 |
| 印刷电路板数量 | 64 | 输入数量及类型 | 53 I/O |
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
