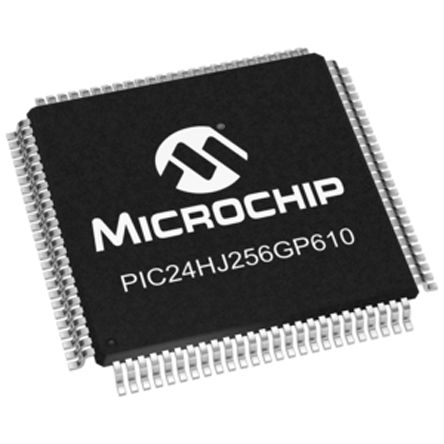

PIC24HJ256GP610-I/PF
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit PIC24 PIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray 16-bit Microcontrollers - MCU 16 Bit MCU 100LD 40 MIPS 256KB Flash 16 bit MCU TQFP100 14x14 Ro IC MCU 16BIT 256KB FLASH 100TQFP PIC24HJ256GP610-I/PF, 16 bit Microcontroller PIC 40MIPS 256kb Flash, 16kb RAM, I2C SPI 100-Pin TQFP 16BIT MCU 256K FLASH 40MIPS, SMD MCROPIC24HJ256GP610-I/PF PIC microcontroller; SRAM:16384B; 80MHz; TQFP100; 3÷3.6V Microchip PIC24HJ 系列 16 bit PIC MCU, 40MIPS, 256 kB ROM 闪存, 16 kB RAM, 100针 TQFP封装 PIC24HJ 256K TQFP100 85°C |
| 分类 |
商业参数
| 最小起订量 | 90 | 单位包装 | 90 |
| 其他名称 | PIC24HJ256GP610IPF | 产品类别 | 16-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 90 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :24HJ256 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 转速 | 40 MHz | 定时器 | 9 x 16 bit |
| 存储器 | 256kB | RAM 大小 | 16 KB |
| 内核大小 | 16-Bit | 核心类型 | PIC |
| 频率 | 40 MHz | 接口 | CAN/I2C/SPI/UART |
| 时钟速率 | 32 kHz | 分辨率 | 16bit |
| 存储器容量 | 16 KB | 存储器类型 | FLASH |
| I/O 数量 | 85 | 位数 | 12/12 |
| 额定电压 | 3 → 3.6 V | 看门狗定时器 | 1 |
| 时钟频率 | :80MHz | 数据转换器 | A/D 32x10b, 32x12b |
| 最大频率 | 64MHz | DAC数量 | 8 |
| 振荡器类型 | Internal | 串行协议 | 2 |
| 供电电压 | 3.3 V | 数字I/O线数 | 53pins |
| RS-232（422、485） | 2 | 分辨率（位） | 10Bit |
| 通道数量 | 32 | 程序存储器大小 | 256 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 32/32 |
| 最小输入电压 | 2V | 最小供电电压 | 3 V |
| 频率（中心/带宽） | 16bit | 每元件位数 | 12 bit |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 宽度 | 14mm | 高度 | 1.05mm |
| 长度 | 14mm | 重量 | 0.02 |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 引脚间距 | :0.50mm | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :100 |
| 封装形式 | 100TQFP | 冷却的封装 | TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 14 |
| 包装数量 | TQFP | 尺寸/外形 | 14 x 14 x 1.05mm |
| 位数 | 100 | 外壳尺寸-插件 | 1 |
| 供应商器件封装 | 100-TQFP (14x14) | 核心数/总线宽度 | 16 Bit |
| 脉冲宽度失真（最大） | 8(16 bit) | ||
产品信息
| SPI | 2 | SPG | 5 |
| USB | 0 | 类型 | PIC microcontroller |
| 系列 | PIC24H | 产品特性 | CAN Controller |
| 协议 | 2 | 匹配码 | PIC24HJ256GP610-I/PF |
| CAN编号 | 0 | 闪存大小 | :256KB |
| SPI编号 | 2 | 片内RAM（通道数×位宽） | 2(32-chx12-bit) |
| 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 架构 | RISC |
| 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART | 可编程性 | Yes |
| 核心处理器 | PIC | 内置振荡器 | 512kHz, 7,37MHz |
| 单元数量 | 1 | 定时器数量 | 9 |
| 控制器系列 | :PIC24HJxxxGPxxx | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC24 | DigiKey可编程 | Yes |
| 宏单元数量 | 4 | 印刷电路板数量 | 100 |
| 微控制器特性 | :Self-Reprogrammable under Software Control, On-Chip LDO Regulator, Operating Voltage Range of 2.0V to 3.6V | A/D转换器数量 | :64 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
文档与媒体
相关型号
