PIC24FJ64GA104-I/ML
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit PIC24 PIC RISC 64KB Flash 2.5V/3.3V 44-Pin QFN EP MCU 16-bit PIC24F PIC RISC 64KB Flash 2.5V/3.3V 44-Pin QFN EP 16-bit, 16 MIPS, 64KB Flash, 8KB RAM IC MCU 16BIT 64KB FLASH 44QFN 16-bit Microcontrollers - MCU 64KB Flash 8KB RAM, nanoWatt MCU, 16BIT, 64K FLASH, 16MIPS, 44QFN PIC microcontroller; SRAM:8192B; 32MHz; QFN44; 2÷3.6V Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 64 kB ROM 闪存, 8 kB RAM, 26针 QFN封装 |
| 分类 |
商业参数
| 最小起订量 | 320 | 单位包装 | 45 |
| 其他名称 | PIC24FJ64GA104IML | 产品类别 | 16-bit Microcontrollers - MCU |
| 标准包装数量 | Bulk | 工厂包装数量 | 45 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 认证机构 | No | ||
电气参数
| 转速 | 32 MHz | 存储器 | 64kB |
| RAM 大小 | 8 KB | 内核大小 | 16-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/UART |
| 时钟速率 | 32 MHz | 存储器容量 | 8 KB |
| I/O 数量 | 35 | 位数 | 10 |
| 额定电压 | 2 | 时钟频率 | :32MHz |
| 数据转换器 | A/D 13x10b | 最大频率 | 32MHz |
| DAC数量 | :5 | 振荡器类型 | Internal |
| 串行协议 | 2 | 供电电压 | 2.5|3.3 V |
| 通道数量 | 13 | 程序存储器大小 | 64 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 13 |
| 最小供电电压 | 2...3.6V | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V | ||
机械参数
| 宽度 | 8 | 重量 | 0.00022 |
| 包装方式 | Tube | 引脚样式 | No Lead |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :44 |
| 封装形式 | 44QFN EP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 8 | 包装数量 | QFN EP |
| 位数 | 44 | 外壳尺寸-插件 | 0.88 |
| 供应商器件封装 | 44-QFN (8x8) | 核心数/总线宽度 | 16 Bit |
产品信息
| SPI | 2 | SPG | 45 |
| 类型 | PIC microcontroller | 系列 | PIC24F |
| 协议 | 2 | 基本单元 | :PIC24F |
| 闪存大小 | :64KB | 片内RAM（通道数×位宽） | 13-chx10-bit |
| 外设 | Brown-out Detect/Reset, LVD, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, IrDA, SPI, UART/USART | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 控制器系列 | :PIC24FJxxGAxxx |
| 射频系列/标准 | PIC24 | DigiKey可编程 | Yes |
| 宏单元数量 | 0 | 印刷电路板数量 | 44 |
| A/D转换器数量 | :13 | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
文档与媒体
相关型号
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM240011
microchip
MPLAB Starter Kit For PIC24F Development Boards & Kits - PIC / DSPIC MPLAB Starter Kit for PIC24F MCU MPLAB Starter Kit for PIC24F KIT STARTER MPLAB FOR PIC24F MCU DM240011, Development Kit, 16 bit, PIC PIC24F, OLED, MPLAB STARTER KIT MPLABSTARTERKITFORPIC24FMCU,PICDEMO Development kit: Microchip; PIC24FJ256GB110; OLED 128x64 MPLAB Starter Kit for PIC24F PC hosted mode, DM240011, Microchip
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
MA240020
microchip

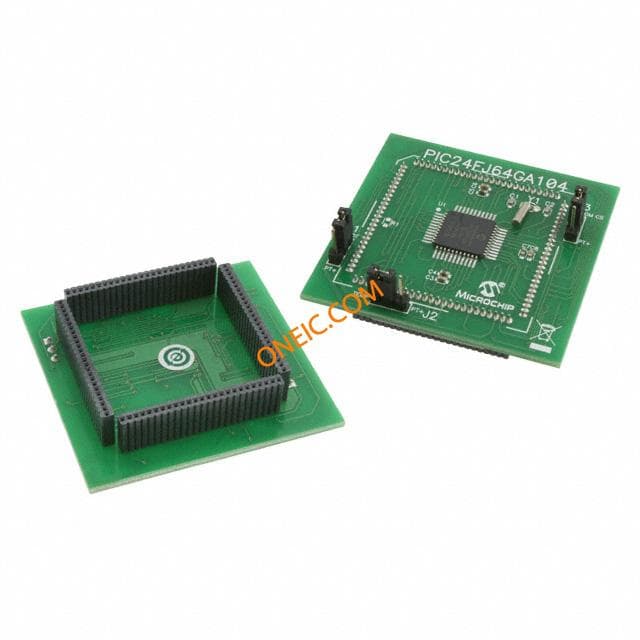

PIC24FJ64GA104 PIM For Explorer 16 Daughter Cards & OEM Boards PIC24FJ64GA104 PIM MODULE PLUG-IN MA240020, Module, 16 bit, PIC, Plug-in Module for the PIC24FJ64GA104 MCU MOD, PLUG-IN, 24FJ64GA104, FOR EXP16 PIC24FJ64GA104PIM-DevelopmentKit Plug-in Mod.PIC24FJ64GA104 PIM
