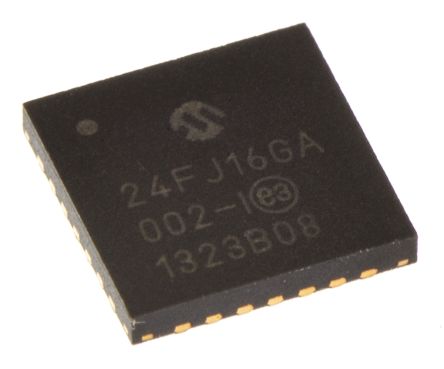

PIC24FJ16GA002-I/ML
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit PIC24 PIC RISC 16KB Flash 2.5V/3.3V 28-Pin QFN EP Tube 16-bit Microcontrollers - MCU 16KB Flash 4096bytes RAM 21 I/O 16-bit Family, 16 MIPS, 16KB Flash, IC MCU 16BIT 16KB FLASH 28QFN PIC24FJ16GA002-I/ML, 16 bit Microcontroller PIC 32MHz 16kb Flash, 4kb RAM, I2C SPI 28-Pin QFN MCU, 16BIT, PIC24F, 64MHZ, QFN-28 IC,PIC24FJ16GA002-I/ML Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 16 kB ROM 闪存, 4 kB RAM, 28针 QFN封装 |
| 分类 |
商业参数
| 最小起订量 | 324 | 单位包装 | 61 |
| 其他名称 | PIC24FJ16GA002IML | 产品类别 | 16-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 61 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 转速 | 32 MHz | 定时器 | 5 x 16 bit |
| RAM 大小 | 4 KB | 内核大小 | 16-Bit |
| 核心类型 | PIC | 频率 | 32 MHz |
| 接口 | I2C/SPI/UART | 时钟速率 | 32 MHz |
| 分辨率 | 10bit | 存储器容量 | 4 KB |
| I/O 数量 | 21 | 额定电压 | 2 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | :32MHz |
| 数据转换器 | A/D 10x10b | 最大频率 | 32MHz |
| DAC数量 | 5 | 振荡器类型 | Internal |
| 供电电压 | 2.5|3.3 V | 分辨率（位） | 10bit |
| 通道数量 | 10 | 程序存储器大小 | 16 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 10 |
| 最小供电电压 | 2/2.2 V | 频率（中心/带宽） | 16bit |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V |
机械参数
| 宽度 | 6mm | 高度 | 0.95mm |
| 长度 | 6mm | 重量 | 0.0001 |
| 包装方式 | Tube | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28QFN EP | 冷却的封装 | QFN |
| 材料表面处理 | :MSL 1 - Unlimited | 尺寸/外形 | 6 x 6 x 0.95mm |
| 位数 | 28 | 供应商器件封装 | 28-QFN (6x6) |
| 核心数/总线宽度 | 16 Bit | 脉冲宽度失真（最大） | 5(10 bit) (Compare/PWM) |
产品信息
| USB | 0 | 系列 | PIC24F |
| 片内RAM（通道数×位宽） | 10-chx10-bit | 外设 | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, PMP, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 定时器数量 | 5 | 控制器系列 | :PIC24FJxxGAxxx |
| 射频系列/标准 | PIC24 | ||
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
