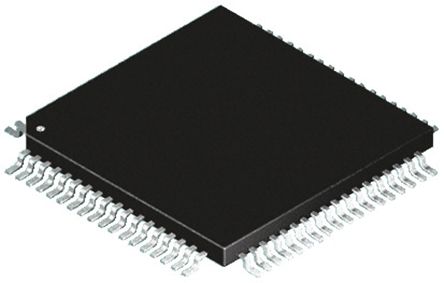

PIC18F85J10-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V 80-Pin TQFP Tray 8 bit MCU TQFP80 IC MCU 8BIT 32KB FLASH 80TQFP 8-bit Microcontrollers - MCU 32 KB FL 2 KB RAM MCU, 8BIT, PIC18F, 40MHZ, TQFP-80 IC, 8BIT MCU, PIC18F, 40MHZ, TQFP-80 Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 32 kB ROM 闪存, 2048 B RAM, 0针 TQFP封装 PIC18F 32K TQFP80 85°C |
| 分类 |
商业参数
| 最小起订量 | 119 | 单位包装 | 119 |
| 其他名称 | PIC18F85J10IPT | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 119 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 转速 | 40 MHz | RAM 大小 | 2 KB |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 接口 | I2C/SPI/USART | 时钟速率 | 40 MHz |
| 存储器容量 | 2 KB | 存储器类型 | FLASH |
| I/O 数量 | 66 | 时钟频率 | :40MHz |
| 数据转换器 | A/D 15x10b | 最大频率 | 40MHz |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3 V |
| 数字I/O线数 | 67pins | 分辨率（位） | 10Bit |
| 通道数量 | 2 | 程序存储器大小 | 32 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 15channels |
| 最大功耗 | 1000 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V | ||
机械参数
| 重量 | 0.0001 | 包装方式 | TRAY |
| 安装样式 | SMD/SMT | 引脚数 | :80 |
| 封装形式 | 80TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 供应商器件封装 | 80-TQFP (12x12) | 核心数/总线宽度 | 8 Bit |
产品信息
| 系列 | PIC18 | 匹配码 | PIC18F85J10-I/PT |
| SPI编号 | 1 | 片内RAM（通道数×位宽） | 15-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 连接性 | EBI/EMI, I²C, SPI, UART/USART |
| 核心处理器 | PIC | 定时器数量 | 5 |
| 控制器系列 | :PIC18FxxJxx | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC18 | ||
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
