点击放大查看

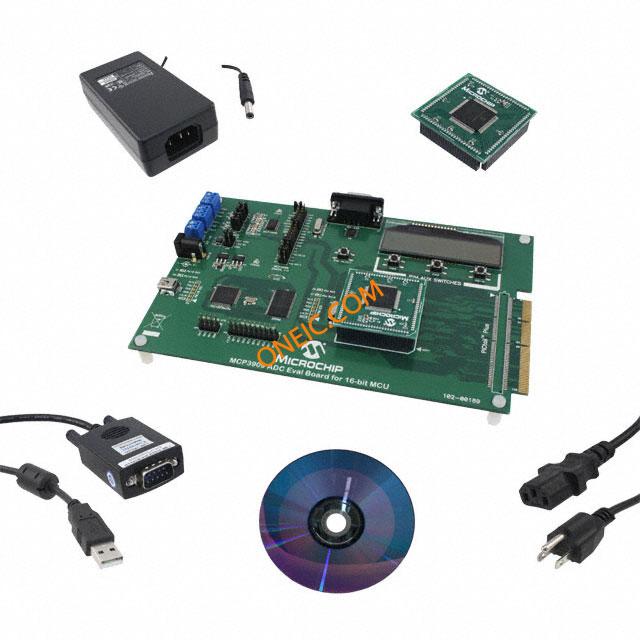

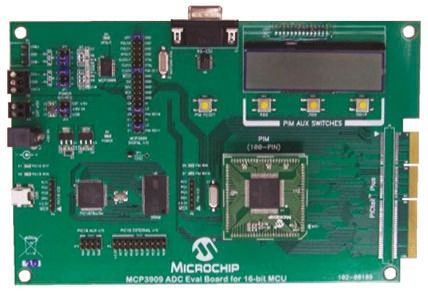

MCP3909EV-MCU16
| 制造商 | Microchip Technology Inc. |
| 描述 | ADC Evaluation Board For 16-Bit MCUs System Data Conversion IC Development Tools MCP3909 Eval Board for 16-bit MCU EVALUATION BOARD FOR MCP3909 MCP3909EV-MCU16, Development Kit, CD with Software, Evaluation Board for MCP3909 (16-Bit MCU) PIC24F, MCP3909, ADC, EVAL BOARD ADCEvalBoardfor16-bitMCU Microchip 模拟开发套件 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | MCP3909EVMCU16 |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :PIC, dsPIC | 接口 | I2C |
| 输入范围 | ±1 V | 数据接口 | Serial |
| 位数 | 16 | 元件数量 | :PIC24F, dsPIC33F |
| ADC/DAC 数量 | 2 | 采样率（每秒） | 15k |
机械参数
| 重量 | 0.1 | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 产品特性 | :Spectral Analysis, System and ADC Performance Analysis, Robust Hardware Design | 功能 | Evaluation board for the MCP3909 dual channel analog to digital converter |
| 技术 | Data Acquisition | 套件内容 | CD with Software, Evaluation Board for MCP3909 (16-Bit MCU) |
| 制造商全称 | :dsPIC33FJxxGPxxx, PIC24FJxxGAxxx | 卡标准 | Development Kit |
| 工具类型/特性 | MCP3909 | 使用的IC/零件 | MCP3909 |
| 芯片组制造商 | :Microchip | 适用产品/相关产品 | :MCP3909 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
