点击放大查看

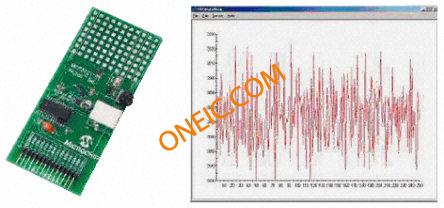

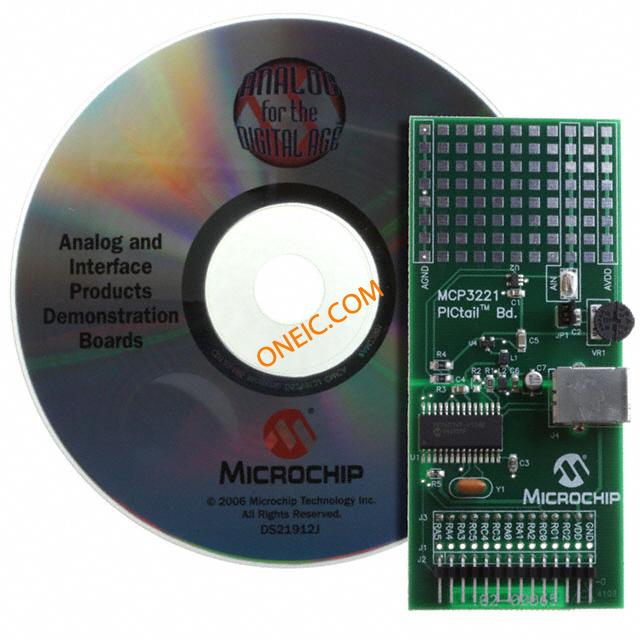

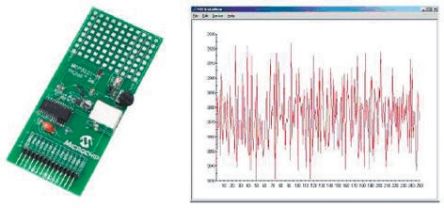

MCP3221DM-PCTL
| 制造商 | Microchip Technology Inc. |
| 描述 | MCP3221 PICtail Demo Board Data Conversion IC Development Tools MCP3221 PICtail Demo Board BOARD DEMO FOR PICTAIL MCP3221 MCP3221DM-PCTL, Development Kit, Data Acquisition, PIC, Demonstration Board PICTAIL, MCP3221, ADC, DEMO BOARD Development kit: Microchip; PIC16C745; Interface: I2C Microchip 演示板 数据采集 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 5 | 产品 | Evaluation Boards |
| 单位包装 | 1 | 产品类别 | Data Conversion IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | 接口 | USB |
| 数据接口 | Serial | 位数 | 12 |
| 元件数量 | :PIC16F | ADC/DAC 数量 | 1 |
| 采样率（每秒） | 22.3k | ||
机械参数
| 重量 | 0.18 | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Cable, Software |
| 产品特性 | :Simple DC Signal Generation, On-board USB, Easy to Interface | 套件类型 | :Data Acquisition |
| 基本单元 | :3221 | 技术 | Data Acquisition |
| 套件内容 | Demonstration Board | 制造商全称 | :PICtail |
| 卡标准 | Development Kit | 通信接口 | USB |
| 单元数量 | 1 | 关联项目 | DV16101 |
| 工具类型/特性 | MCP3221 | 电路数 | PIC16C745 |
| 使用的IC/零件 | MCP3221 | 芯片组制造商 | :Microchip |
| 应用细节 | :ADC | 可编程特性 | MCP3221 |
| 支持MCU系列 | :MCP3221 | 适用产品/相关产品 | :MCP3221 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
