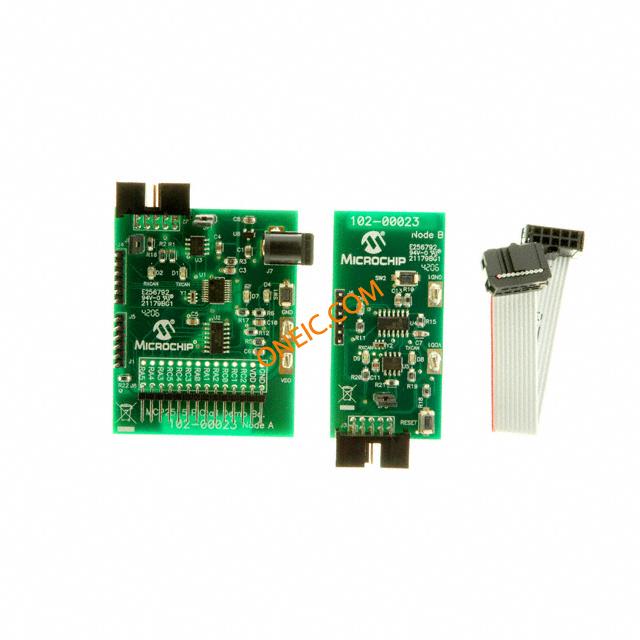

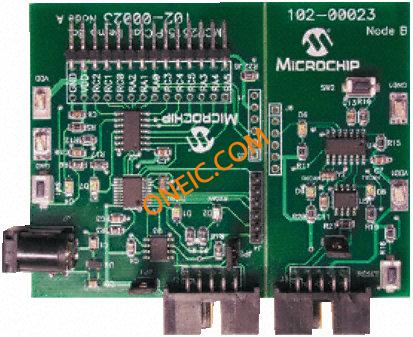

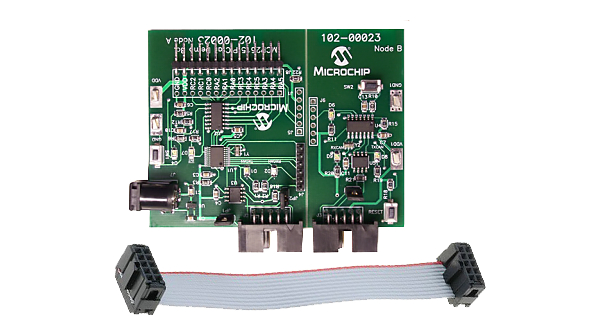

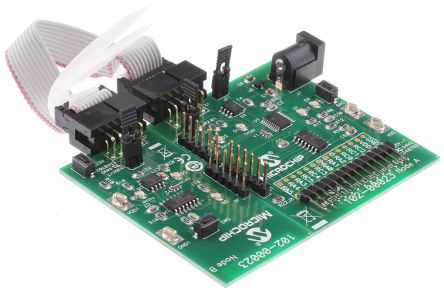

MCP2515DM-PCTL
| 制造商 | Microchip Technology Inc. |
| 描述 | The MCP2515 Pictail DEMO Board Implements A Simple Can Bus Using Two Nodes Networking Development Tools MCP2515 CAN Cont PICtail Demo Brd MCP2515 CAN Controller PICtail Demo BOARD DEMO FOR MCP2515 MCP2515DM-PCTL, Development Kit, CAN, CD with Documentation, One Power/Bus Cable MCP2515, CAN CONTROLLER, DEMO BOARD MCP2515CANCONTROLLERPICTAILDEMOBOARD Development kit: Microchip; PIC16F676 MCP2515 CAN Controller PICtail Demonstration Board MCP2515 CAN Controller PICtail Demo Board, MCP2515DM-PCTL, Microchip Microchip PICtail CAN 总线接口 演示板 |
| 分类 |
商业参数
| 最小起订量 | 4 | 产品 | Demonstration Boards |
| 单位包装 | 1 | 其他名称 | MCP2515DMPCTL |
| 产品类别 | Networking Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :PIC | 数据速率 | 125 kbps |
| 接口 | CAN | 供电电压 | 5 V |
| 元件数量 | :PIC16F | ||
机械参数
| 重量 | 0.45 | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Cable, Software |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :Push Button, LED Connected to I/O, Two Headers on Node A |
| 功能 | MCP2515 CAN Controller PICtail Demo Boardÿ | 套件类型 | Microchip |
| 基本单元 | :2515 | 技术 | CAN |
| 套件内容 | CD with Documentation, One Power/Bus Cable | 主要用途 | Interface, CAN Controller |
| 制造商全称 | :PIC16F6xxx | 卡标准 | Development Kit |
| 按键数 | 2 | 单元数量 | 1 |
| 工具类型/特性 | MCP2515, MCP25020 | 电路数 | PIC16F676 |
| 主要特性 | Stand alone CAN Controller with CAN I/O Expander | 使用的IC/零件 | MCP2515, MCP25020 |
| 芯片组制造商 | :Microchip | 支持MCU系列 | :MCP2515 |
| 适用产品/相关产品 | :MCP2515, MCP25020 | ||
