点击放大查看

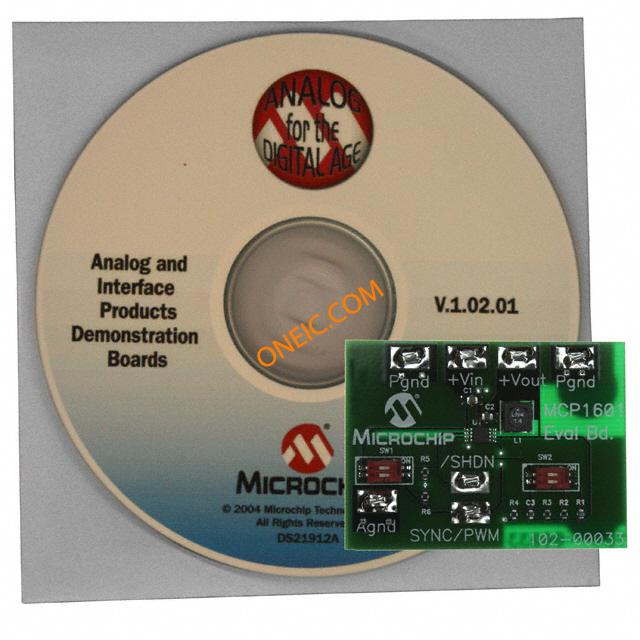

MCP1601EV
| 制造商 | |
| 描述 | MCP1601 Buck Regulator Evaluation Board Power Management IC Development Tools MCP1601 Buck Reg Eval Brd MCP1601 Buck Regulator Evaluation Bo BOARD EVALUATION FOR MCP1601 MCP1601, BUCK REGULATOR, EVAL BOARD |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 5 | 产品 | Power Management Modules |
| 单位包装 | 1 | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :Power Management - Voltage Regulator | 额定电压 | 2.7 V to 5.5 V |
| 输出电流 | 500mA | 稳压器拓扑 | Buck |
| 开关频率 | 750kHz | 最小输入电压 | 1.8V, 2.05V, 2.45V or 3.28V |
机械参数
| 重量 | 0.45 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :Low Noise Fixed Frequency PWM Operation, On/Off Switch for Evaluating Start-up & Shutdown Operation | 基本单元 | :1601 |
| 套件内容 | :Evaluation Board, Users Guide, Data Sheet | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | MCP1601 |
| 使用的IC/零件 | MCP1601 | 支持MCU系列 | :MCP1601 |
文档与媒体
相关型号
MCP1601-I/MS
microchip
Conv DC-DC Single Step Down 2.7V to 5.5V 8-Pin MSOP 500mA Sychronous Buck Regulator IC REG BUCK SYNC ADJ 0.5A 8MSOP Synchronous BUCK regulator, 500mA Voltage Regulators - Switching Regulators 500mA Sych Buck V REG, SYNCH BUCK 0.5A, SMD, MSOP8 DC/DCRegulator,Sync-Buck,0.9-Vin500mAOut,2.7-5.5VIn,MSOP-8 DC-DC converter; step down; Uin:2.7÷5.5V; Uout:0.8÷5V; 500mA Switching Voltage Regulators 500mA Sych Buck
¥23.6488
详情
MCP1601T-I/MS
microchip
Conv DC-DC Single Step Down 2.7V to 5.5V 8-Pin MSOP T/R 500mA Sychronous Buck Regulator IC REG BUCK SYNC ADJ 0.5A 8MSOP Voltage Regulators - Switching Regulators 500mA Sych Buck Switching Voltage Regulators 500mA Sych Buck
¥5.3720
详情
