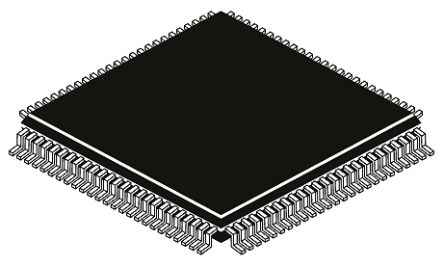

点击放大查看
DSPIC33FJ64GS610-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 64KB Flash 3.3V 100-Pin TQFP 16 Bit MCU/DSP 40MIPS 64KB FLASH IC DSC 16BIT 64KB FLASH 100TQFP Digital Signal Processors & Controllers - DSP, DSC 16 Bit MCU/DSP 40MIPS 64KB FLASH IC, DSC, 16BIT, 64K FLASH, 100TQFP DsPIC microcontroller; Memory:64kB; SRAM:9216B; TQFP100; 3÷3.6V Microcontroller 16 Bit TQFP-100, DSPIC33FJ64GS610-I/PT, Microchip MCU, dsPIC33, 64kB, 16bit, Flash, TQFP |
| 分类 |
商业参数
| 最小起订量 | 1000 | 产品 | DSCs |
| 单位包装 | 119 | 其他名称 | DSPIC33FJ64GS610IPT |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Trays |
| 工厂包装数量 | 119 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 转速 | 40 MHz | 存储器 | 64kB |
| RAM 大小 | 9 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 120 MHz |
| 存储器容量 | 4 KB | I/O 数量 | 58 |
| 核心电压 | :2.75V | 看门狗定时器 | 1 |
| 数据转换器 | A/D 24x10b, D/A 1x10b | 最大频率 | 120MHz |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 模拟输入/输出 | 4 | 程序存储器大小 | 64 KB |
| 程序存储器类型 | Flash | 工作频率 | :40MHz |
| 最小供电电压 | 3 V | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 重量 | 0.02 | 包装方式 | Tray |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :100 | 封装形式 | 100TQFP |
| 冷却的封装 | TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 包装数量 | 20 | 位数 | 100 |
| 供应商器件封装 | 100-TQFP (12x12) | 核心数/总线宽度 | 16 Bit |
产品信息
| SPG | 20 | 类型 | dsPIC33 |
| 系列 | DSPIC33F | 产品特性 | CAN Controller |
| 闪存大小 | :64KB | 片内RAM（通道数×位宽） | 24-chx10-bit |
| 外设 | Brown-out Detect/Reset, DMA, QEI, POR, PWM, WDT | 架构 | RISC |
| 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART, USB | 可编程性 | Yes |
| 核心处理器 | dsPIC | 内置振荡器 | 32kHz, 7,37MHz |
| 单元数量 | 1 | 定时器数量 | 5 |
| 射频系列/标准 | dSPIC33 | 宏单元数量 | 1 |
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
