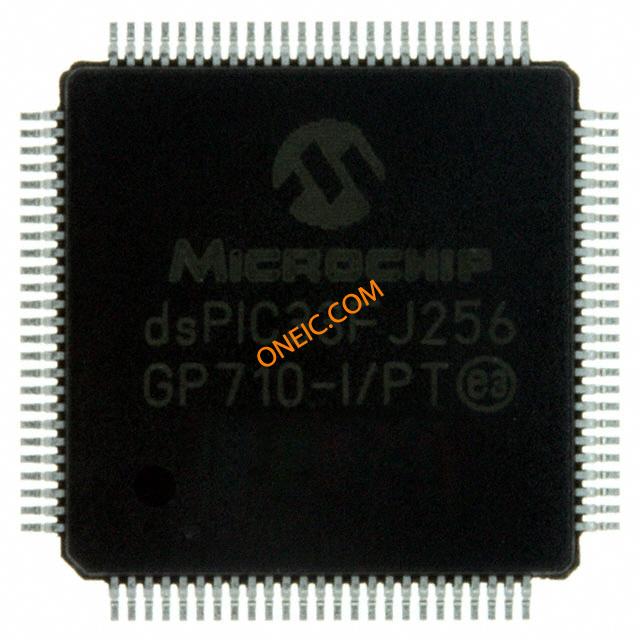

点击放大查看
DSPIC33FJ256GP710-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray 16 bit MCU / DSP TQFP100 12x12 IC DSC 16BIT 256KB FLASH 100TQFP Digital Signal Processors & Controllers - DSP, DSC 40MIPS 256KB MCU 16-Bit dsPIC33 RISC 256KB Flash 3.3V 100-Pin TQFP Tray IC, 16BIT MCU-DSP, 256KB FLASH, SMD DSP,16-Bit,256KBFlash,30KBRAM,85I/O,TQFP-100 dsPIC33FJ 256K TQFP100 85°C |
| 分类 |
商业参数
| 最小起订量 | 119 | 产品 | DSCs |
| 单位包装 | 119 | 其他名称 | DSPIC33FJ256GP710IPT |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Trays |
| 工厂包装数量 | 119 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 85 | 转速 | 40 MHz |
| 定时器 | 9-16-bit,4-32-bit | 存储器 | 256KBytes |
| 以太网 | 0 | RAM 大小 | 30 KB |
| 内核大小 | 16-Bit | 核心类型 | dsPIC |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 比较器数量 | 8 | EEPROM容量 | 0Byte |
| 存储器容量 | 256KByte | 存储器类型 | FLASH |
| 显示类型 | no | I/O 数量 | 85 |
| 电压范围 | 3-3.6V | 位数 | :16 |
| 核心电压 | :2.75V | 看门狗定时器 | 1 |
| 时钟频率 | 40MIPS | 数据转换器 | A/D 32x10b/12b |
| 最大频率 | 80MHz | DAC数量 | 8 |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 数字I/O线数 | 85pins | 分辨率（位） | 12Bit |
| 通道数量 | 2 | 模拟输入/输出 | 32-Channel,12-Bit |
| 非易失性存储器 | 0Bytes | 程序存储器大小 | 256 KB |
| 程序存储器类型 | Flash | 工作频率 | :40MHz |
| ADC/DAC 数量 | 32channels | 最小输入电压 | 3V |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 重量 | 0.02 | 包装方式 | TRAY |
| 端接方式 | :SMD | 安装样式 | SMD/SMT |
| 引脚数 | :100 | 封装形式 | 100TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 位数 | :33FJ256GP710 |
| 供应商器件封装 | 100-TQFP (12x12) | 核心数/总线宽度 | 16 Bit |
产品信息
| USB | No | 类型 | dSPIC33 |
| 系列 | DSPIC33F | 产品特性 | CAN Controller |
| 基本单元 | :33 | 匹配码 | DSPIC33FJ256GP710-I/PT |
| CAN编号 | 2 | 闪存大小 | :256KB |
| SPI编号 | 2 | 片内RAM（通道数×位宽） | 64-chx10-bit|64-chx12-bit |
| 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| 核心处理器 | dsPIC | 定时器数量 | 9 |
| 标准交期 | 18 weeks | 射频系列/标准 | dSPIC33 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
