点击放大查看

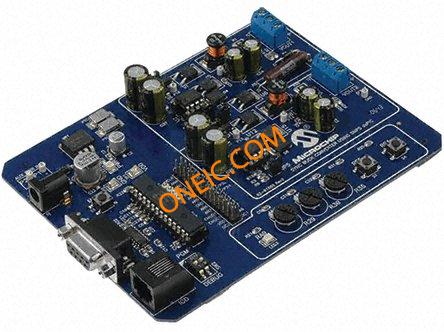

DM300023
| 制造商 | Microchip Technology Inc. |
| 描述 | DSPICDEM SMPS Buck Development Board Development Boards & Kits - PIC / DSPIC dsPICDEM SMPS Buck Demo Brd KIT DEMO DSPICDEM SMPS BUCK DM300023, Development Kit, 16 bit, dsPIC DSPICDEM, SMPS, BUCK, DEV BOARD Development kit: Microchip; dsPIC30F2020; 7÷15V Microchip 评估测试板 16 位 MCU 微控制器开发套件 (dsPIC 内核) |
| 分类 |
商业参数
| 产品 | Development Boards | 产品类别 | Development Boards & Kits - PIC / DSPIC |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85423190 |
电气参数
| 核心类型 | dsPIC | 接口 | RS-232 |
| 供电电压 | 9 V | 元件数量 | :dsPIC30F |
| 稳压器拓扑 | Buck | 最小输入电压 | 7 V ~ 15 V |
| 最小供电电压 | 7...15V | ||
机械参数
| 重量 | 0.04 | 电路板厚度 | Fully Populated |
| 核心数/总线宽度 | 16 bit | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 产品特性 | :RS-232 Serial Channel, MPLAB ICD 2 or REAL ICE Support Ready | 功能 | Development board provides an easy and economical way to evaluate the dsPIC30F202x/1010 SMPS & Digital Power Conversion |
| 套件类型 | :SMPS Buck Development | 基本单元 | :300023 |

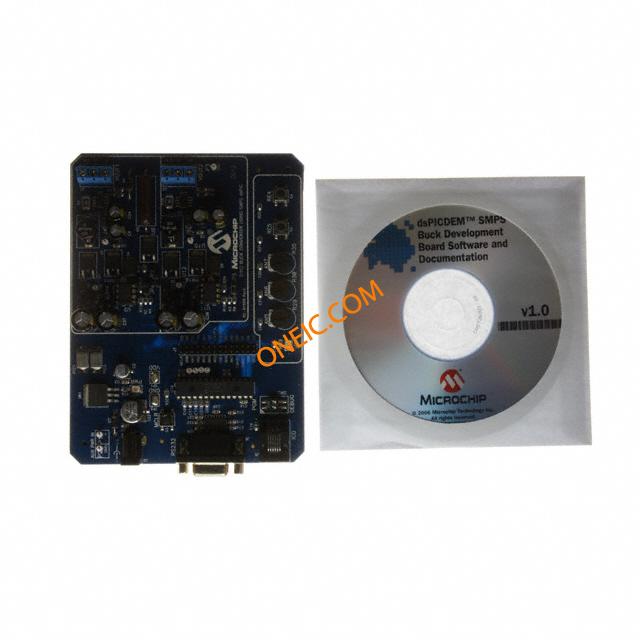

| 技术 | Microcontroller | 套件内容 | CD with Documentation & Software, dsPICDEM SMPS Buck Development Board |
| 主要用途 | DC/DC, Step Down | 卡标准 | Development Kit |
| 通信接口 | RS232 | 单元数量 | 1 |
| 输出及类型 | 2, Non-Isolated | 工具类型/特性 | dsPIC30F2020 |
| 电路数 | dsPIC30F2020 | 使用的IC/零件 | dsPIC30F2020 |
| 芯片组制造商 | :Microchip | 应用细节 | :SMPS |
| 支持MCU系列 | :dsPIC30F | 适用产品/相关产品 | :dsPIC30F1010/2020 |
