点击放大查看

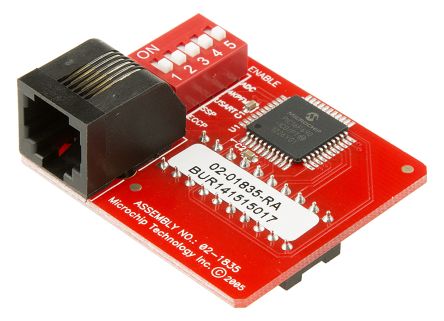

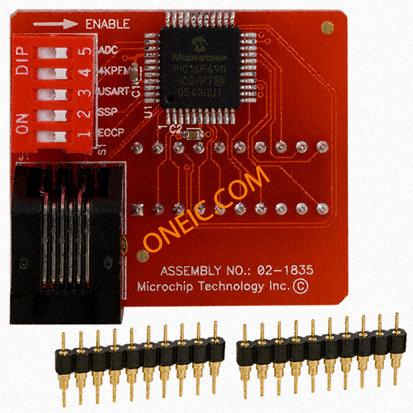

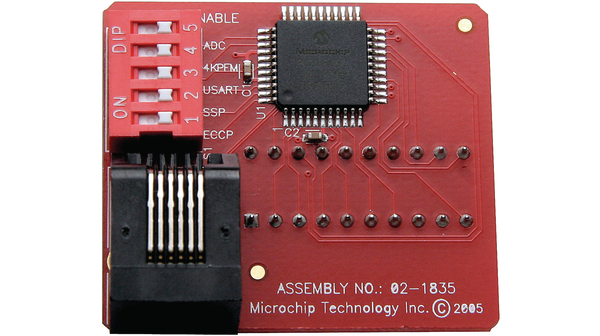

AC162061
| 制造商 | Microchip Technology Inc. |
| 描述 | Development Tools, Headers For ICD Devices Sockets & Adapters ICD 2 Header Intrfce Header Interface PIC16F690 leadfree HEADER INTRFC MPLAB ICD2 20PIN AC162061, Header, 8 bit, PIC, Header Interface for PIC16F690 MPLAB ICD HEADER, FOR PIC16F690 MPLABICD2HeaderInterfaceforPIC16F690(20P) Adapter: debug header; PIC16F690 Debug header for PIC16F690 - PIC16F690, AC162061, Microchip Microchip 8 位 MCU 针座 微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | MPLAB ICD 2 Headers |
| 单位包装 | 1 | 产品类别 | Sockets & Adapters |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85423190 |
| 无铅定义 | Leadfree | ||
电气参数
| 核心类型 | PIC | 供电电压 | :5.5V |
机械参数
| 重量 | 0.25 | 尺寸/外形 | 1.65 in x 1.45 in x 0.725 in |
| 核心数/总线宽度 | 8 bit | ||
产品信息
| 类型 | Development Tool | 产品特性 | :- |
| 功能 | 2 headers provide in-circuit debugging capabilities for specific Microchip devices | 匹配码 | AC162061 |
| 技术 | 8 bit | 适配器类型 | debug header |
| 套件内容 | Header Interface for PIC16F690 | 卡标准 | Header |
| 附件类型 | Transition Header | 开发套件 | ACCESSORY |
| 单元数量 | 1 | 关联项目 | MPLAB-ICD2, MPLAB-ICD3 |
| 标准交期 | 6 weeks | 工具类型/特性 | PIC16F631/677, PIC16F685/687/689/690 |
| 电路数 | PIC16F690 | 适用产品/相关产品 | MPLAB ICD2, PIC16F690-ICD |
