点击放大查看

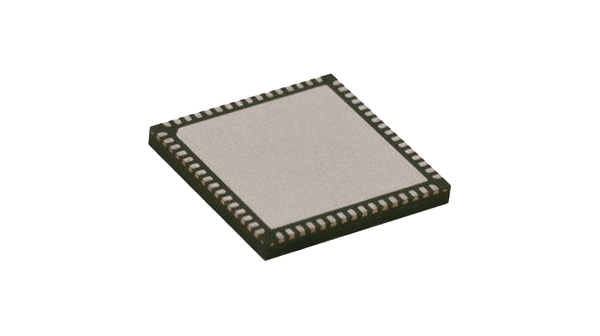

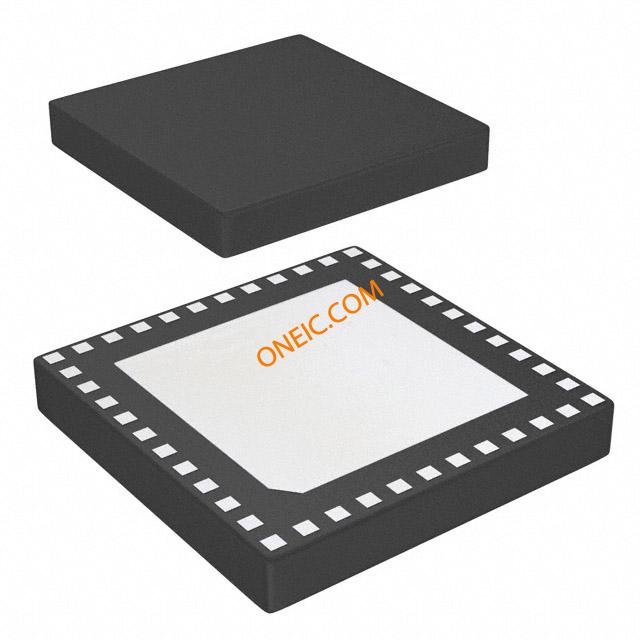

PIC32MX250F128D-I/TL
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 32-bit PIC32 PIC RISC 128KB Flash 2.5V/3.3V 44-Pin VTLA EP Tube IC MCU 32BIT 128KB FLASH 44VTLA MCU,PIC32MX250,40MHZ,128KB Flash,VTLA28 32-bit Microcontrollers - MCU 32B 128KB FL 32KB RAM 40MHz 44 Pin IC, 32BIT MCU, PIC32, 40MHz, VFTLA-44 IC, MCU, 32BIT, 128K FLASH, 44VTLA Microcontroller 32 Bit VFTLA-44, PIC32MX250F128D-I/TL, Microchip |
| 分类 |
商业参数
| 其他名称 | PIC32MX250F128DITL | 标准包装数量 | 61 |
| 标准封装名称 | TLA | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 认证机构 | No | ||
电气参数
| 转速 | 40MHz | 定时器 | 5 x 16 bit |
| RAM 大小 | 32KB | 内核大小 | 32-Bit |
| 核心类型 | PIC | 接口 | :I2C, LIN, SPI, UART, USB |
| 时钟速率 | 40 MHz | 存储器容量 | 32 KB |
| I/O 数量 | 33 | 位数 | 10 |
| 额定电压 | 2.3 → 3.6 V | 时钟频率 | :40MHz |
| 数据转换器 | A/D 13x10b | 最大频率 | 40MHz |
| DAC数量 | 5 | 振荡器类型 | Internal |
| 串行协议 | 2 | 供电电压 | 2.3 V to 3.6 V |
| 分辨率（位） | 10bit | 通道数量 | 0 |
| 程序存储器大小 | 128KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 13 | 最小供电电压 | 3.6 |
| 频率（中心/带宽） | 16bit | 供电电压 (Vcc/Vdd) | 2.3 V ~ 3.6 V |
机械参数
| 宽度 | 6mm | 高度 | 0.925mm |
| 长度 | 6mm | 重量 | 0 |
| 包装方式 | Tube | 引脚样式 | No Lead |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :44 | 封装形式 | 44-VFTLA Exposed Pad |
| 冷却的封装 | VTLA | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 6 | 包装数量 | VTLA EP |
| 尺寸/外形 | 6 x 6 x 0.925mm | 位数 | 44 |
| 外壳尺寸-插件 | 0.93(Max) | 供应商器件封装 | 44-VTLA (6x6) |
| 核心数/总线宽度 | 32bit | ||
产品信息
| SPI | 2 | USB | 1 |
| 系列 | PIC32MX | 协议 | 2 |
| 片内RAM（通道数×位宽） | Yes | 外设 | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, IrDA, LIN, PMP, SPI, UART/USART, USB OTG |
| 核心处理器 | MIPS32® M4K™ | 定时器数量 | 5 |
| 控制器系列 | :PIC32 | 射频系列/标准 | PIC32 |
| DigiKey可编程 | Yes | 其他规格 | 2 |
| 印刷电路板数量 | 44 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
