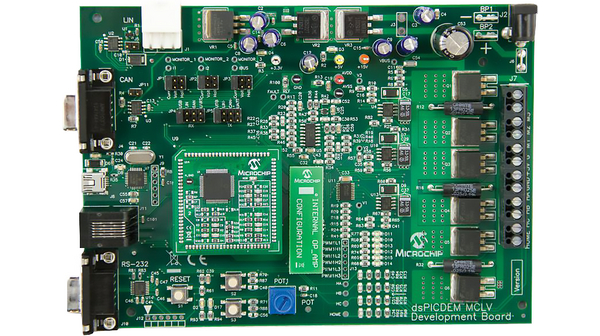

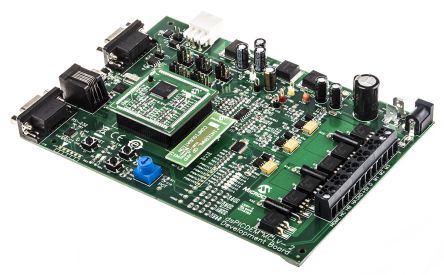

点击放大查看
DM330021-2
| 制造商 | Microchip Technology Inc. |
| 描述 | DSPICDEM MCLV-2 DEVELOPMENT BO BOARD DEV DSPICDEM MCLV-2 Power Management IC Development Tools 64KB Flash, 8KB RAM 16MIPS USBOTG Crypto dsPICDEM MCLV-2 Development Board For Developing Sensored Or Sensorless Brushless DC EVAL, DSPICDEM MCLV-2 Development kit: Microchip; dsPIC33EP256MC506; 24VDC dsPICDEM MCLV-2 Development Board, DM330021-2, Microchip Microchip dsPICDEM MCLV-2 套件 BLDC 电机 开发板 MPLAB dsPICDEM MCLV2Dev.Board |
| 分类 |
商业参数
| 产品 | Development Boards | 其他名称 | DM3300212 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :dsPIC | 接口 | CAN, LIN, RS-232, USB |
| 元件数量 | :dsPIC33F | 最小供电电压 | 24V DC |
机械参数
| 重量 | 0.2 | 包装数量 | 1 |
产品信息
| SPG | 1 | 类型 | Motor / Motion Controllers & Drivers |
| 内容 | Board | 嵌入式 | Yes, MCU, 16-Bit |
| 产品特性 | :Motor Control Interface, Communication Interface, Power Supply Connector | 套件类型 | Microchip |
| 套件内容 | :Development Board for dsPICDEM BLDC & PMSM Motor Control, dsPIC33EP256MC506 Internal OpAmp PIM | 主要用途 | Power Management, Motor Control |
| 制造商全称 | :dsPIC33FJxxMCxxx | 通信接口 | USB |
| 按键数 | 2 | 单元数量 | 1 |
| 工具类型/特性 | dsPIC33F, PIC24F, dsPIC33E, PIC24E | 电路数 | dsPIC33EP256MC506 |
| 使用的IC/零件 | dsPIC33EP256MC506 | 芯片组制造商 | :Microchip |
| 应用细节 | 3-Phase BLDC/PMSM motor control | 适用产品/相关产品 | dsPIC33F, PIC24F, dsPIC33E, PIC24E |
