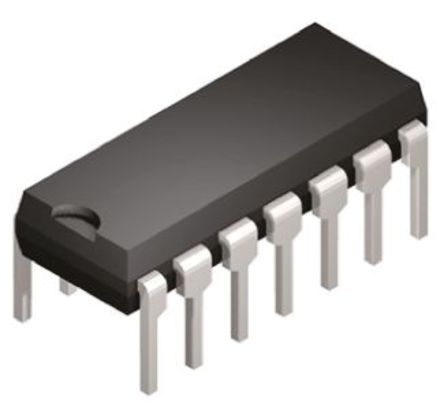

点击放大查看
PIC16F505-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | Buy now, ships today. PIC16F505-I/P - PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.5KB (1K x 12) FLASH 14-PDIP from Microchip Technology. View datasheets, pricing and availability from DigiKey now! |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 30 |
| 其他名称 | PIC16F505IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 30 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :16F505 | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 12 | 转速 | 20 MHz |
| 定时器 | 1 x 8 bit | 存储器 | 1.5KBytes |
| RAM 大小 | 72 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20MHz |
| 接口 | RS-232, USB | 时钟速率 | 20 MHz |
| 比较器数量 | 0 | 存储器容量 | 1.5KByte |
| 存储器类型 | FLASH | 显示类型 | no |
| I/O 数量 | 12 | 电压范围 | 2-5.5V |
| 位数 | :8 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 最大频率 | 20MHz | DAC数量 | 0 |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3|5 V |
| 数字I/O线数 | 12pins | 通道数量 | 0 |
| 模拟输入/输出 | 0 | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 1.5 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 0channels | 8位定时器数量 | 1 |
| 最小供电电压 | 2...5.5V | 频率（中心/带宽） | 8bit |
| 最大功耗 | 800 mW | 每元件位数 | :8 |
| 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.28in | 高度 | 0.195in |
| 长度 | 0.775in | 重量 | 0.000001 |
| 包装方式 | TUBE | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :14 |
| 封装形式 | 14PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 包装数量 | PDIP |
| 尺寸/外形 | 0.775 x 0.28 x 0.195in | 位数 | 14 |
| 供应商器件封装 | 14-PDIP | 核心数/总线宽度 | 8 Bit |
产品信息
| SPG | 900 | USB | No |
| 类型 | PIC microcontroller | 系列 | PIC16 |
| 匹配码 | PIC16F505-I/P | CAN编号 | 0 |
| 闪存大小 | :1.5KB | SPI编号 | 0 |
| 片内RAM（通道数×位宽） | No | 外设 | POR, WDT |
| 架构 | RISC | 核心处理器 | PIC |
| 内置振荡器 | 4MHz | 单元数量 | 1 |
| 定时器数量 | 1 | 控制器系列 | :PIC16F |
| 标准交期 | 17 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F505-I/P | DigiKey可编程 | Yes |
| 微控制器特性 | :Flash, WDT, ICSP, 4MHZ Int. Osc. | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | ||
