DSPIC33FJ64GP706-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | . DSPIC33FJ64GP706-I/PT - dsPIC dsPIC™ 33F Microcontroller IC 16-Bit 40 MIPs 64KB (64K x 8) FLASH 64-TQFP (10x10) from Microchip Technology. from now! |
| 分类 |
商业参数
| 最小起订量 | 1200 | 产品 | DSCs |
| 单位包装 | 160 | 其他名称 | DSPIC33FJ64GP706IPT |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Trays |
| 工厂包装数量 | 160 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 输入端 | 53 | 转速 | 40 MHz |
| 定时器 | 9-16-bit,4-32-bit | 存储器 | 64KBytes |
| RAM 大小 | 16 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 比较器数量 | 8 | 存储器容量 | 16 KB |
| 存储器类型 | Flash | I/O 数量 | 53 |
| 电压范围 | 3-3.6V | 位数 | 16 |
| 核心电压 | :2.75V | 看门狗定时器 | 1 |
| 时钟频率 | 40MIPS | 数据转换器 | A/D 18x10b/12b |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 模拟输入/输出 | 18-Channel,12-Bit | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 64 KB | 程序存储器类型 | Flash |
| 工作频率 | :40MHz | 最小供电电压 | 3 V |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 重量 | 0.006667 | 包装方式 | Tray |
| 端接方式 | :SMD | 引脚间距 | :0.5mm |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :64 | 封装形式 | 64TQFP |
| 冷却的封装 | TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 位数 | 64 | 供应商器件封装 | 64-TQFP (10x10) |
| 核心数/总线宽度 | 16 Bit | ||
产品信息
| 类型 | dSPIC33 | 系列 | DSPIC33F |
| 产品特性 | CAN Controller | 基本单元 | :33 |
| 闪存大小 | :64KB | 片内RAM（通道数×位宽） | 18-chx10-bit|18-chx12-bit |
| 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | 架构 | RISC |
| 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART | 可编程性 | Yes |
| 核心处理器 | dsPIC | 定时器数量 | 9 |
| 射频系列/标准 | dSPIC33 | ||
环境参数
| 温度范围 | :Industrial | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
MA330011
microchip
Plug-In Module Comes With A 100-Pin DSPIC33FJ256GP710A DSC Sample Daughter Cards & OEM Boards dsPIC33F GP 100P to 100P Plug In Module dsPIC33F GP 100P to 100P QFP Plug In MODULE DSPIC33 100P TO 100QFP MA330011, Module, 16 bit, dsPIC, Plug-in Module for the dsPIC33FJ256GP710 PIM, 100P TO 100P, QFP, DSPIC33F GP dsPIC33F 100-pin Plug-In Module -, MA330011, Microchip
MA330012
microchip
Plug-In Module Comes With A 100-Pin DSPIC33FJ256GP710A DSC Sample Daughter Cards & OEM Boards dsPIC33F GP 100P to 84P Plug In Module dsPIC33F GP 100P to 84P QFP Plug In MODULE DSPIC33 100P TO 84QFP MA330012, Module, 16 bit, dsPIC, Plug-in Module for the dsPIC33FJ256GP710A DSC PIM, 100P TO 84P, QFP, DSPIC33F GP dsPIC33 GP 100P to 84P TQFP Plug-In Module
DM300019
microchip
Starter Development Board Offers An Economical Way To Evaluate Both The PIC24 And DSPIC Digital Signal Controller Development Boards & Kits - PIC / DSPIC dsPICDEM 80L Starter Demo Board BOARD DEMO DSPICDEM 80L STARTER DM300019, Development Kit, 16 bit, dsPIC DEV BOARD, DSPIC, 30F6014A, DSPIC33F Microchip 16 位 MCU 微控制器开发套件
DM300024
microchip
DSPICDEM 1.1 PLUS GENERAL PURP Development Boards & Kits - PIC / DSPIC dsPICDEM 1.1 GP KIT DEMO DSPICDEM 1.1 DM300024, Development Kit, 16 bit, dsPIC, Documentation, dsPIC30F6014A Plug-in Processor Module dsPICDEM1.1PlusGeneralPurposeDemoBoard Development kit: Microchip; dsPIC30F6014A; Connector type: ICSP dsPICDEM 1.1 Plus General Purpose Demo Board
DV164033
microchip
Evaluation Board For Application Development Using Microchipys PIC24F, 16Bit Microcontrollers Development Boards & Kits - PIC / DSPIC ICD 2 w/ Explorer 16 Development Board Explorer 16 Starter Kit KIT START EXPLORER 16 MPLAB ICD2 EXPLORER 16 KIT; MPLAB ICD 2 WITH EXPORER 16 PIC24, DSPIC33, EXPLORER 16 KIT EXPLORER16KIT,MPLABICD2WITHEXPORER16 Development kit: Microchip
DV244005
microchip
MPLAB Real ICE In Circuit Emulator Probe Kit Emulators / Simulators In Circuit Emulator MPLAB REAL ICE REAL ICE with Base Probe KIT PROBE MPLAB REAL ICE DV244005, Development Kit, 32 bit, PIC PROBE KIT, MPLAB REAL ICE MPLABREALIn-CircuitEmulator(ICE)withIDE Programmer: microcontrollers; USB; No.of diodes:2 MPLAB REAL ICE, in-circuit emulator PC hosted mode, DV244005, Microchip Microchip 处理器和微控制器开发套件
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
AC164327
microchip
64L TQFP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters Socket Module MPLAB PM3 64L TQFP SOCKET MODU MPLAB PM3 64L TQFP Socket Module MODULE SKT FOR 64TQFP Socket Module for MPLAB PM3 (TQFP 64L)
DM330011
microchip
MPLAB Starter Kit For DSPIC DSCS Audio IC Development Tools MPLAB Starter Kit for dsPIC DSC MPLAB Starter Kit for dsPIC DSC KIT STARTER MPLAB FOR DSPIC DSC DM330011, Development Kit, 16 bit, dsPIC DSPIC, DEBUGGER, MPLAB STARTER KIT MPLABStarterKitforDSPICDSC,DSPICDEMO Development kit: Microchip; dsPIC33FJ256GP506 MPLAB Starter Kit for dsPIC DSCs PC hosted mode dsPIC33FJ256GP506, DM330011, Microchip
DM330013
microchip
Micro-Stick For DSPIC33F And PIC24H Development Board Development Boards & Kits - PIC / DSPIC Microstick PIC24H and dsPIC33F Microstick dsPIC33F and PIC24H MICROSTICK DSPIC33F/PIC24H BOARD MICROSTICK, DSPIC33F, PIC24H MicrostickfordsPIC33FandPIC24H,StarterKits
SW006013
microchip
MPLAB C Compiler For DSPIC DSCs Is A Full Featured Ansi Compliant C Compiler Development Software C Compiler for dsPIC30F/dsPIC33F C Compiler for dsPIC30F, dsPIC33F DS C COMPILER MPLAB FOR DSPIC DSC MPLAB C COMPILER, FOR DSPIC DSC DEVTOOL-Analog,SOT89-3VoltageRegulatorEvaluationBoard MPLAB C Compiler for dsPIC DSCs

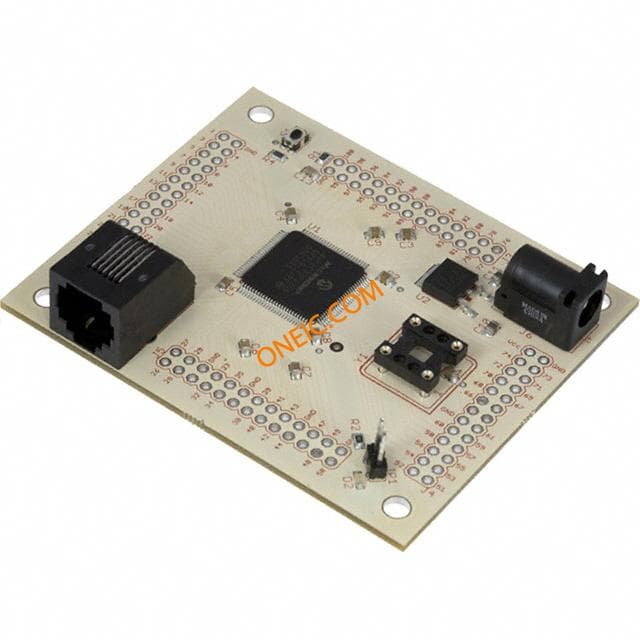

DKSB1001B
