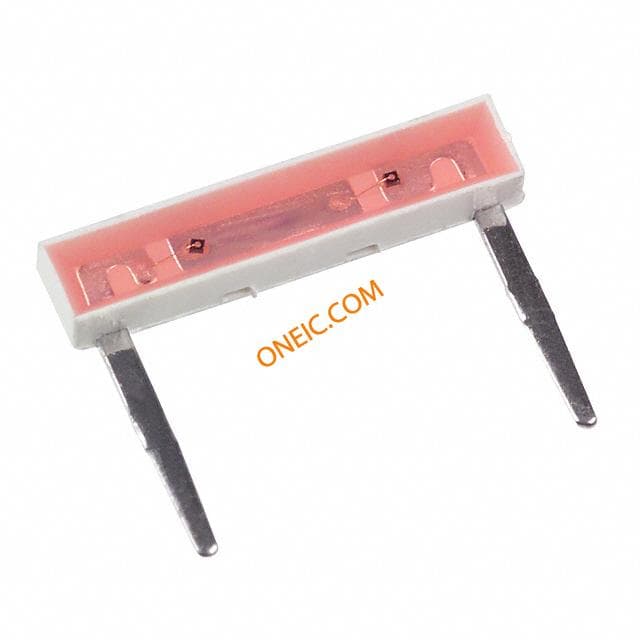

SSB-LX02SRC
| 制造商 | |
| 描述 | LED Bars and Arrays 9mm x 2mm Red LED SIDE LOOK 2CHIP SUPR RED CLR LED Uni-Color Red 660nm 2-Pin LIGHT BAR, RED, 2 LED, 50MCD LED |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | LED Light Bars | 产品类别 | LED Bars and Arrays |
| 标准包装数量 | 1,000 | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85312020 | ||
电气参数
| 电流 | 30mA | 额定功率 | 100 mW |
| 视角 | 160° | 额定电压 | 3.6V |
| 峰值波长 | 660nm | LED正向电流 | 20 mA |
| LED正向电压 | 3.6 V | 毫坎德拉等级 | 50mcd |
| 主波长 | 660 nm | 直流正向电流（If）（最大） | :20mA |
机械参数
| 颜色 | Red (x 2) | 重量 | 0.002 |
| LED颜色 | :Bar | 包装方式 | Bulk |

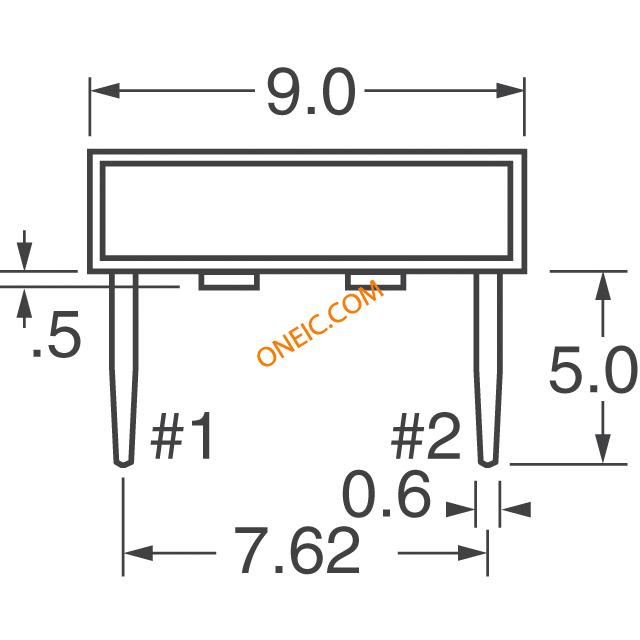

| 安装类型 | Through Hole, Right Angle | 总长度 | 9 mm |
| 照明颜色 | Red | ||
产品信息
| 透镜类型 | Clear | 配置 | 1 high x 2 wide |

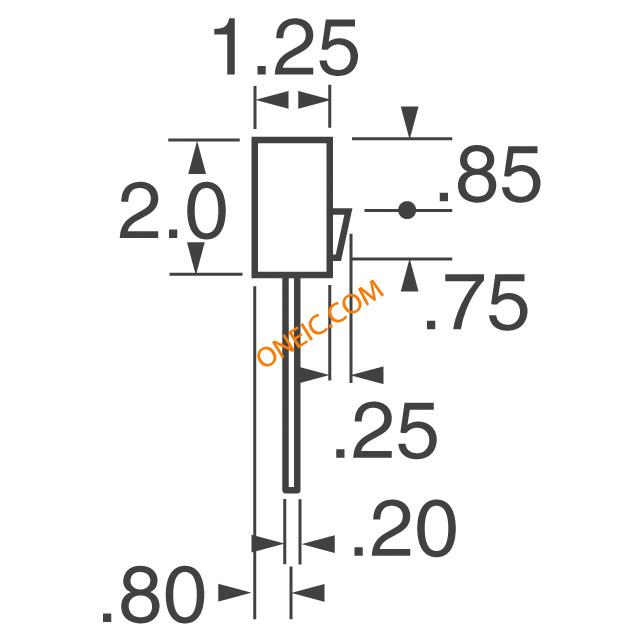

| LED数量 | :2 | 显示尺寸 | :9mm x 2mm |
环境参数
| 光通量 @ 电流/温度 | 50 mcd | ||
